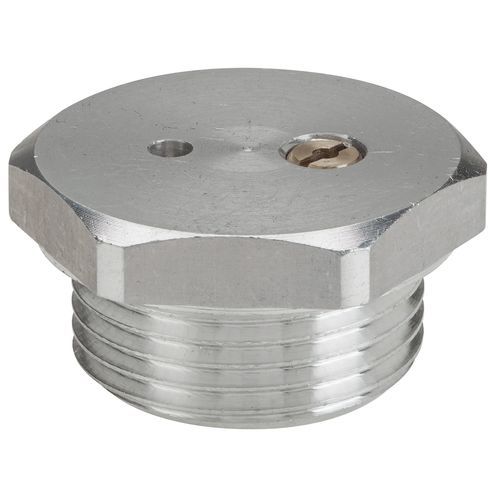

Breather plug TSVV

Description
Breather plug in aluminium alloy with double valve made of hardened and tempered light alloy. It is provided with standard 0.10 bar calibration. The double valve ensures venting of internal pressure and inlet of air when the flow medium level decreases thus hindering cavitation on delivery. Particularly suitable for Tanks, Oil-hydraulic Circuits and Hydraulically Operated Lifting Machines.

Options
Available on request with anodizing treatment.

Notes
The product is not designed to operate in an inverted position. Installation or testing in this configuration does not comply with the design specifications and may compromise the device's proper operation.

Technical Info - GAS ISO 228
TYPE | CODE | THREAD | t | f | e | WEIGHT (g)
TSVV1G | 1GSVV10A | 1/4" | 10 | 10 | 17 | 10
TSVV2G | 1GSVV20A | 3/8" | 10 | 10 | 22 | 17
TSVV3G | 1GSVV30A | 1/2" | 10 | 10 | 27 | 28

Technical Info - MB METRIC
TYPE | CODE | THREAD | t | f | e | WEIGHT (g)
TSVV5M | 1MSVV50A | 22x1,5 | 10 | 10 | 27 | 28

Characteristics / technical specifications

• Model: TSVV
• Material: aluminium alloy body; double valve made of hardened and tempered light alloy
• Standard calibration: 0.10 bar
• Function: double valve provides venting of internal pressure and air inlet when fluid level decreases to reduce cavitation
• Recommended applications: Tanks, Oil-hydraulic Circuits, Hydraulically Operated Lifting Machines
• Optional treatments: anodizing available on request
• Operation constraint: not designed to operate in inverted position; installation/testing inverted may compromise operation
• Detailed type data (GAS ISO 228): TSVV1G — Code 1GSVV10A — Thread 1/4" — t 10 — f 10 — e 17 — Weight (g) 10; TSVV2G — Code 1GSVV20A — Thread 3/8" — t 10 — f 10 — e 22 — Weight (g) 17; TSVV3G — Code 1GSVV30A — Thread 1/2" — t 10 — f 10 — e 27 — Weight (g) 28
• Detailed type data (MB METRIC): TSVV5M — Code 1MSVV50A — Thread 22x1,5 — t 10 — f 10 — e 27 — Weight (g) 28
