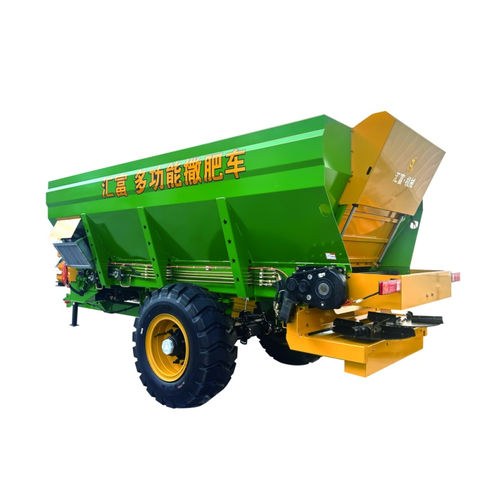

Towed manure spreader 2FGH-3

2-axlesingle-axle

Product Overview
The towed disc manure spreader is designed to evenly distribute various solid fertilizers (livestock manure, organic fertilizer, compound fertilizer, etc.) across farmland using one or two high-speed rotating discs. Multiple hopper capacities and adjustable spreading settings make the machine suitable for small farms and large planting bases.

Function Introduction
The spreader conveys fertilizer from the hopper to the rotating disc(s) via a chain-scraper conveying system. High-speed disc rotation and a specific blade geometry ensure a consistent and adjustable spreading pattern. Operators can set spreading width and disc speed according to crop requirements and field conditions.

Advantages

• Uniform application — high-speed disc rotation and disc design promote consistent distribution for homogeneous crop growth.
• High work efficiency — large hopper capacities and wide adjustable spreading width enable rapid fertilization of large areas.
• Reduced labor — towed, mechanized application decreases manual handling; only tractor towing and parameter adjustments are required.

Technical Parameter
Double Disc Manure Spreader Technical Parameter
No. | item | unit | 3m³ | 4m³ | 5m³ | 6m³ | 8m³ | 10m³ | 12m³
1 | Model | / | 2FGH-3 | 2FGH-4 | 2FGH-5 | 2FGH-6 | 2FGH-8 | 2FGH-10 | 2FGH-12
2 | Hopper Capacity | m³ | 3 | 4 | 5 | 6 | 8 | 10 | 12
3 | Supporting Power | hp | ≥40 | ≥40 | ≥50 | ≥60 | ≥80 | ≥90 | ≥120
4 | Spreading Width | m | 6-16 | 6-16 | 6-16 | 6-16 | 6-16 | 6-16 | 6-16
5 | Overall Dimension | mm | 4620*1670*1770 | 4620*1670*1970 | 4978*1930*2100 | 4955*2000*2300 | 5810*2455*2590 | 5810*2455*2790 | 5810*2455*2990
6 | Spreading Device | / | / | double Disc | single Disc | single Disc | single Disc | Double Disc | Double Disc | Double Disc
7 | Tire | / | / | 10.75-15 | 10.75-15 | 14-17.5 | 14-17.5 | 16/70-20 | 400/55-22.5 | 400/55-22.5
8 | Tire No. | pc | 2 | 2 | 2 | 2 | 2 | 2 | 2
9 | Fertilizer conveying method | / | / | Chain Scraper Push | Chain Scraper Push | Chain Scraper Push | Chain Scraper Push | Chain Scraper Push | Chain Scraper Push | Chain Scraper Push

Precautions for use

• 1. Pre-operation inspection: Check hitch components (pins, hooks), tires and wheels (pressure, deformation), spreading discs and conveying system (rotation, blade condition, transmission).
• 2. During operation: Adjust travel speed, disc rotation and spreading width according to fertilizer type and field conditions; avoid overloading beyond rated hopper capacity.
• 3. Maintenance: Clean residual fertilizer from hopper and discs after use, inspect disc blades and transmission for wear and replace parts as needed; store in a dry, ventilated place when idle.

Technical specifications

• Product type: Towed disc manure/fertilizer spreader
• Hopper capacities: 3 m³, 4 m³, 5 m³, 6 m³, 8 m³, 10 m³, 12 m³
• Models: 2FGH-3, 2FGH-4, 2FGH-5, 2FGH-6, 2FGH-8, 2FGH-10, 2FGH-12
• Required tractor power: from ≥40 hp to ≥120 hp depending on model
• Spreading width: adjustable 6–16 m
• Spreading device: single or double disc depending on model
• Tire sizes vary by model (examples: 10.75-15, 14-17.5, 16/70-20, 400/55-22.5)
• Conveying method: Chain scraper push
• Overall dimensions: vary by model (see Technical Parameter table)
