Towed manure spreader 2FGH series

horizontals beaterstandemsingle-axle

Product overview

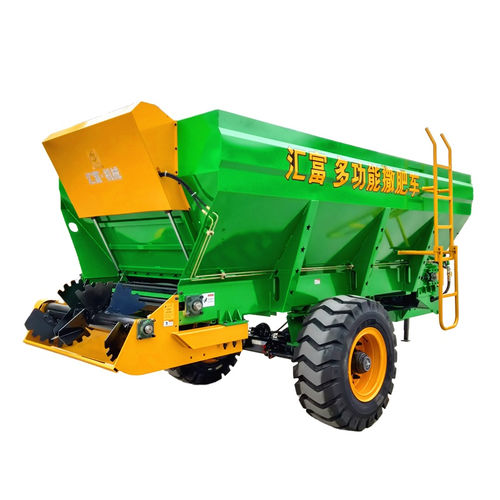

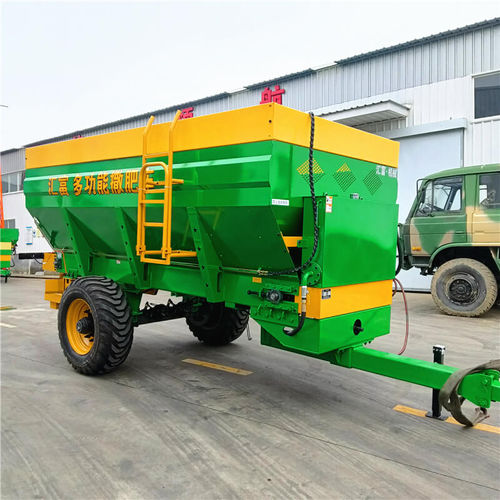

Trailed manure spreader with horizontal auger and disc spreading, PTO-driven with chain-scraper feeding. Available in 8 m³ (2FGH-8H) and 12 m³ (2FGH-12H) versions for uniform field application of solid manure, compost and organic fertilizers.

Features

• Horizontal auger combined with disc spreaders for even lateral distribution
• Chain-scraper feeding ensures positive material flow
• Adjustable working width: 6–12 m
• Hydraulic double-cylinder rear door for controlled discharge
• PTO drive compatible with standard tractors
• Optional reinforced tires and tandem axle for heavy-duty use

Applications

• Field spreading of solid livestock manure (cattle, sheep)
• Application of compost and organic soil amendments
• Distribution of pellet or powder organic fertilizers
• Use on medium to large farms and by agricultural contractors

Optional configurations

• Manual rear gate
• Double-cylinder hydraulic rear gate
• Reinforced/industrial tires
• Tandem axle

Specifications
Model | 2FGH-8H | 2FGH-12H
Capacity | 8 m³ | 12 m³
Overall dimensions (L×W×H) | 5600×2300×2320 mm | 5600×2300×3100 mm
Hopper / tank dimensions | 3855/3210×1800/1195×1140 mm | 3855/3210×1800/1195×1540 mm
Tractor power | 80 HP | 120 HP
Maximum load | 10000 kg | 18000 kg
Material | Carbon steel / manganese steel | Carbon steel / manganese steel
PTO speed | Tractor rear PTO (speed to be confirmed) | Tractor rear PTO (speed to be confirmed)
Working width | 6–12 m | 6–12 m
Auger / spreading system | Horizontal auger + disc spreading | Horizontal auger + disc spreading
Drive type | Tractor PTO drive | Tractor PTO drive
Feeding system | Chain conveyor (scraper) | Chain conveyor (scraper)
Hydraulic rear door | Double-cylinder hydraulic rear door | Double-cylinder hydraulic rear door
Tire size | 16/70-20 | 500/60-22.5
Axle / tire qty | Single axle (tandem optional) | Single axle (tandem optional)

Technical details

• Models available: 2FGH-8H, 2FGH-12H
• Working width adjustable from 6 m to 12 m
• Required tractor power: approx. 80 HP (8 m³) / 120 HP (12 m³)
• Feeding: chain-scraper positives feed for cohesive and loose materials
• Spreading: horizontal auger with disc units for lateral distribution
• Hydraulics: double-cylinder rear door for discharge control
• Materials: carbon steel / manganese steel; stainless steel recommended for corrosive inputs
• Optional extras: manual gate, hydraulic gate, reinforced tires, tandem axle
