Tractor-mounted fertilizer spreader 2FGH series

3-point hitchgranularorganic

Product overview

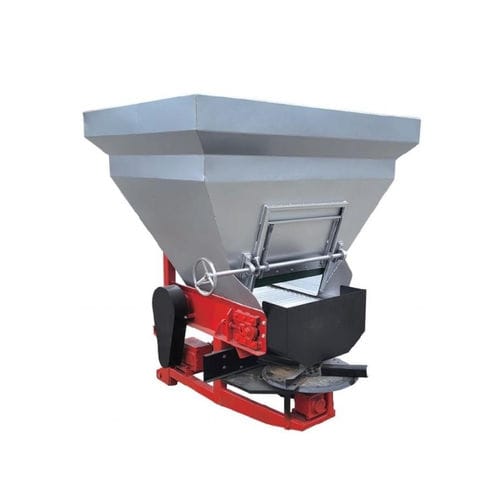

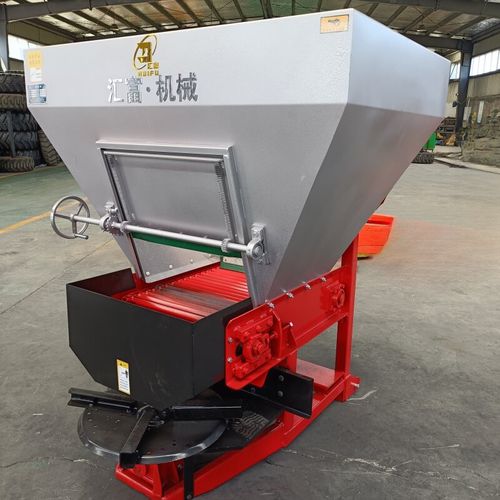

The 2FGH-0.6 is a carbon steel 3-point hitch fertilizer spreader with a 0.6 m³ hopper, designed for spreading granular, compound and organic fertilizers in orchards, greenhouses, terraced and small plots. Chain-slat feeding delivers material to a high-speed disc spreading system for uniform distribution across a 6–15 m working width. Fits Category I/II 3-point mounts and is PTO-driven.

Features

• Compact 3-point mounting (Cat. I/II) for small and medium tractors; small turning radius for narrow rows and protected crops.
• Disc spreading system producing even coverage over 6–15 m depending on setting and material.
• Carbon steel hopper available in capacities from 0.6 m³ to 2.0 m³ as a cost-efficient option for non-corrosive fertilizers.
• Manual outlet gate and adjustable disc speed to control application rate and working width.
• Chain-slat / scraper chain feeding prevents bridging and ensures steady feed to the disc.
• Optional configurations: hopper material (carbon steel or stainless), spreading disc types, outlet size and reinforced frame.

Applications

• Orchards: between-row and under-tree fertilization.
• Greenhouses: compact design for narrow aisles and protected cropping.
• Hills & small plots: lightweight 3-point solution for terraced and uneven terrain.
• Pasture & grassland: top-dressing with granular or organic fertilizers.

Specifications table
Model | 2FGH-0.6 | 2FGH-1 | 2FGH-1.3 | 2FGH-1.5 | 2FGH-2
Capacity | 0.6 m³ | 1 m³ | 1.3 m³ | 1.5 m³ | 2 m³
Overall Dimensions (L×W×H) | 1150×1450×1050 mm | 1350×1450×1580 mm | 1350×1650×1680 mm | 1450×1860×1500 mm | 1700×2300×1860 mm
Tractor Power | ≥30 HP | ≥40 HP | ≥60 HP | ≥60 HP | ≥80 HP
Material | Carbon steel | Carbon steel | Carbon steel | Carbon steel | Carbon steel
PTO Drive | Tractor rear PTO drive | Tractor rear PTO drive | Tractor rear PTO drive | Tractor rear PTO drive | Tractor rear PTO drive
Working Width | 6–15 m | 6–15 m | 6–15 m | 6–15 m | 6–15 m
Spreading System | Disc spreading | Disc spreading | Disc spreading | Disc spreading | Disc spreading
Drive Type | 3-point hitch + tractor rear PTO | 3-point hitch + tractor rear PTO | 3-point hitch + tractor rear PTO | 3-point hitch + tractor rear PTO | 3-point hitch + tractor rear PTO
Feeding System | Chain-slat / scraper chain conveying | Chain-slat / scraper chain conveying | Chain-slat / scraper chain conveying | Chain-slat / scraper chain conveying | Chain-slat / scraper chain conveying
Outlet Control | Manually adjustable fertilizer outlet | Manually adjustable fertilizer outlet | Manually adjustable fertilizer outlet | Manually adjustable fertilizer outlet | Manually adjustable fertilizer outlet

Technical specifications

• Model range: 2FGH series (0.6–2.0 m³) and stainless variants (400L–1500L).
• Hopper capacities: 0.6 m³, 1 m³, 1.3 m³, 1.5 m³, 2.0 m³.
• Required tractor power: from ≥30 HP depending on model.
• Working width: adjustable 6–15 m via outlet opening and disc speed.
• Feeding: chain-slat / scraper chain to avoid bridging.
• Drive: 3-point hitch (Cat. I/II) plus tractor rear PTO.
