Towed manure spreader

single-axle

Product Overview

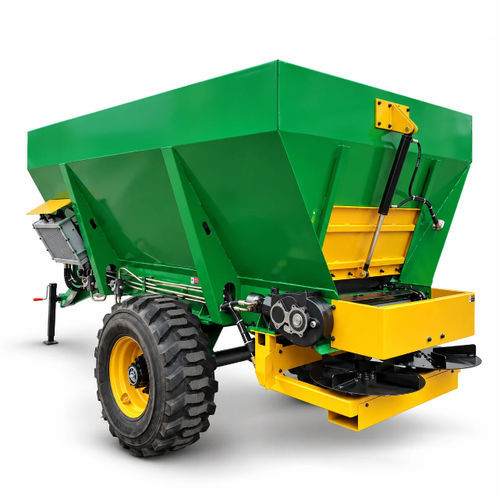

The HUIFU 5 m³ hydraulic trailed dual-disc manure spreader is engineered for transport and uniform distribution of solid livestock manure, organic and compound fertilizers. It features a 5 m³ hopper, chain-board feeding and a rear-mounted dual-disc spreading unit, designed for tractor towing and field application of solid fertilizers.

Main Features

• 5 m³ hopper capacity to reduce reloading frequency in the field
• Rear dual-disc spreading unit with adjustable spreading width of 6–12 m
• Chain-board feeding system for continuous and even material delivery to the discs
• Trailed design compatible with tractors of 60 HP or above
• Maximum load capacity: 8,000 kg, suited for heavy field operations
• Mechanical spreading system for reliable coverage across variable materials

Operation Notes
Material is conveyed rearward by the chain-board and distributed by rotating discs. Adjust spreading width, disc speed and tractor travel speed according to fertilizer type and field conditions. Monitor distribution pattern during operation and fine-tune settings as required. Avoid overloading the hopper to prevent reduced mobility and impaired spreading performance.

Safety and Maintenance
Pre-operation checks: verify hitch connection, pins, hooks, tires, wheel hubs, spreading discs, blades and transmission components for damage, looseness or blockage. Loading and transport: do not exceed rated load capacity and ensure secure coupling to the tractor. Operate at safe travel speeds relative to field conditions and load.

Maintenance: remove residual fertilizer from the hopper and spreading components after use. Cleaning with water is permitted but avoid water ingress into electrical and transmission parts. Inspect disc blades and drive components regularly and replace severely worn parts. Store the machine in a dry, ventilated area during long-term storage to limit corrosion.

Applications

• Agricultural fields
• Farm fertilizer spreading operations
• Small to large-scale planting and soil preparation

Applicable Materials

• Livestock and poultry manure (solid)
• Organic fertilizer
• Compound fertilizer

Technical Specifications

• Product Type: Hydraulic trailed dual-disc manure spreader
• Matching Power: 60 HP or above
• Overall Dimensions: 4987 × 1930 × 2100 mm
• Hopper Dimensions: 3150/2600 × 1800/900 × 1150 mm
• Hopper Volume: 5 m³
• Maximum Load Capacity: 8,000 kg
• Spreading Device Type: Rear dual disc
• Fertilizer Feeding Method: Chain-board pushing
• Spreading Width: 6–12 m
• Wheel Track: 1580 mm
• Tire Specification: 14-17.5
• Number of Tires: 2
• Operating Method: Rear spreading
• Structure Type: Box body
