Self-propelled manure spreader

single-axlehorticultural

Product overview

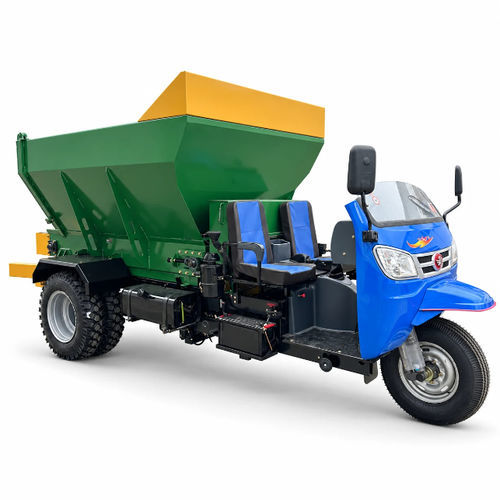

The 3m³ Xiangyunhu three-wheel chassis manure spreader is engineered for transport and uniform field distribution of solid organic materials in agricultural operations. It integrates a Wuzheng Chariot Tiger three-wheel chassis, an independent power unit, a chain-board feeding system and a rear dual-disc spreading device to combine loading, transport and spreading functions in one machine.

Key features and benefits

• Three-wheel chassis with integrated independent power unit for simple on-field mobility and operation.
• Rear dual-disc spreader ensures even lateral distribution across adjustable working widths (6–12 m).
• Chain-board (pushing) feeding transports material continuously from the box to the spreading mechanism.
• Box body with self-unloading tipping function for rapid discharge and multi-function use (transport + spreading).
• Adapted for a wide range of solid materials: livestock manure, farmyard manure, organic fertilizer, lime, distillers’ grains, sugar residue and granular fertilizers.

Technical specifications

Product type: Three-wheel manure spreader
Chassis: Wuzheng Chariot Tiger three-wheel chassis
Engine: Changchai 35 HP water-circulation engine
Overall dimensions: 4600 x 1900 x 1920 mm
Box dimensions: 2300 x 1700 x 1000 mm
Box volume: 3 m³
Maximum load capacity: 4000 kg
Spreading device type: Rear dual-disc spreader
Material feeding system: Chain-board pushing system
Spreading width: 6–12 m (adjustable)
Brake system: Vacuum-assisted braking
Tire specifications: Front 600-16; Rear 700-16
Number of tires: 5
Operating method: Rear spreading
Structure type: Box body with self-unloading tipping function

Applications

• Livestock farms
• Agricultural fields
• Orchards
• Greenhouses
• Pastures

Applicable materials

• Livestock manure
• Farmyard manure
• Organic fertilizer
• Lime
• Distillers’ grains
• Sugar residue
• Granular fertilizer

Operation instructions and safety notes

• Pre-operation inspection: Verify chassis, tires, power system, transmission and spreading device are in good condition before use.
• Loading and transport: Do not exceed rated load. Distribute material evenly in the box to maintain balance. Avoid sudden braking and sharp turns.
• Operating safety: Ensure no personnel or obstacles are near the machine before activating the spreader. Monitor spread pattern and stop for inspection if abnormalities occur.
• Cleaning: Remove residual material after operation and avoid water ingress into electrical and key transmission components during cleaning.

Maintenance recommendations

• Clean fertilizer residue after each use to reduce corrosion and blockage risk.
• Lubricate rotating and wear components regularly according to operating conditions.
• Inspect spreading components and wear parts frequently and replace as needed.
• Store the machine in a dry, ventilated area for long-term storage.
