Self-propelled manure spreader

single-axle

Product Overview

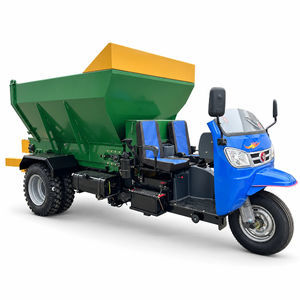

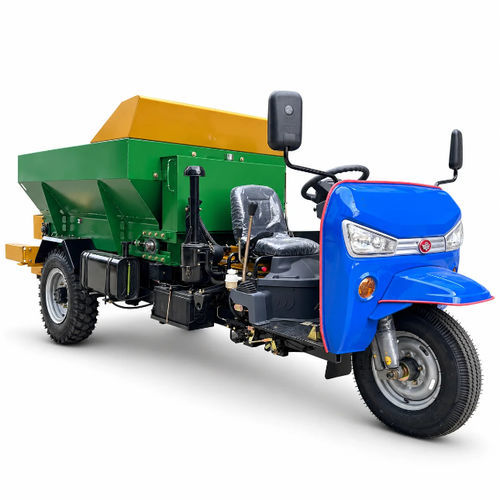

The 1.5 m³ Jinruihu chassis manure spreader is a self-powered agricultural machine for transporting and applying solid fertilizer materials. It combines a Wuzheng Jinruihu three-wheel chassis with a Changchai 32 HP water-circulation engine, a chain-board feeding system and a rear-mounted dual-disc spreading unit for consistent rear discharge and field application.

Main Specifications Summary
Hopper volume: 1.5 m³
Maximum load capacity: 2000 kg
Overall dimensions: 4200 x 1400 x 1500 mm
Spreading width: 6–12 m (adjustable depending on material and field conditions)

Key Features and Advantages

• Self-powered three-wheel chassis: Wuzheng Jinruihu three-wheel chassis provides an integrated powered platform for transport and spreading operations.
• Rear dual-disc spreading system: Rear-mounted dual-disc device distributes solid fertilizers evenly across the working area.
• Chain-board material feeding: Chain-board pushing system conveys material from the hopper to the spreading unit during operation.
• Combined carrying and spreading: 1.5 m³ hopper with 2000 kg maximum load integrates transport and field application in one machine.
• Adjustable spreading width: 6–12 m range adaptable to material type, particle size and field conditions.
• Versatile material handling: Suitable for farmyard manure, organic fertilizer, lime, distiller’s grains, sugar residue, granular fertilizer and dry, wet or lumpy manure.

Applications
Suitable for livestock farms, agricultural fields, greenhouses, orchards, grasslands and pastures.

Operation Instructions and Safety Notes
Pre-operation inspection
Inspect vehicle body, chassis and frame for damage, deformation or cracks. Check tire pressure and condition. Verify engine oil, coolant and fuel levels. Inspect belts, chains and transmission components. Ensure spreading discs rotate freely and the discharge area is clear.

Loading and transportation safety
Do not exceed rated load capacity. Distribute material evenly in the hopper to minimize center-of-gravity shift. Use appropriate driving speed and avoid sudden braking or sharp turns during transport.

Operating safety
Ensure no personnel or obstacles are near the discharge area before starting the spreading device. Adjust spreading settings according to fertilizer type, particle size, moisture and field requirements. Monitor spreading performance and stop the machine for inspection if uneven spreading, blockage or abnormal conditions occur.

Maintenance precautions
Clean residual fertilizer from the vehicle and spreading device after use. When washing with water, avoid electrical components and key transmission parts. Inspect and maintain the power system and spreading components regularly.

Maintenance Recommendations

• Clean remaining fertilizer from the vehicle and spreading device after each use to reduce corrosion.
• Lubricate rotating components and inspect the spreading mechanism regularly.
• Check wear on spreading parts, belts, chains and transmission components; replace severely worn parts as needed.
• Perform regular engine maintenance per the engine manufacturer's schedule.
• For long-term storage keep the machine in a dry, well-ventilated area; for fuel-powered units follow fuel-drain procedures recommended by the engine documentation.

Technical Specifications

• Product Type: Three-Wheel Dual-Disc Manure Spreader
• Chassis: Wuzheng Jinruihu Three-Wheel Chassis
• Engine: Changchai 32 HP Water-Circulation Engine
• Overall Dimensions: 4200 x 1400 x 1500 mm
• Box Dimensions: 1980 x 1400 x 660 mm
• Hopper Volume: 1.5 m³
• Maximum Load Capacity: 2000 kg
• Spreading Device Type: Rear-Mounted Dual Disc
• Material Feeding System: Chain-Board Pushing System
• Spreading Width: 6–12 m
• Brake System: Oil Brake
• Tire Specifications: Front 600-16; Rear 700-16
• Number of Tires: 3
• Operating Method: Rear Spreading
• Structure Type: Box Body
