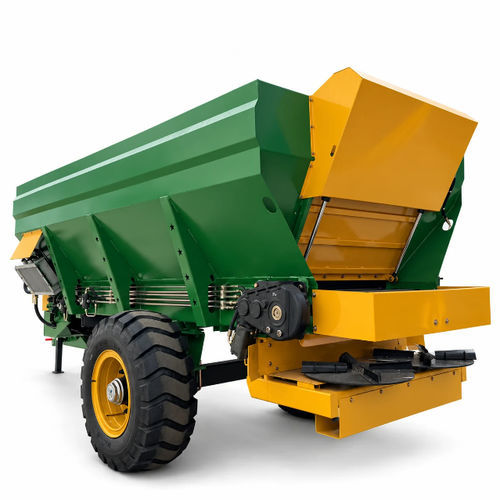

Towed manure spreader

single-axle

Product Overview
The 8m³ Hydraulic Trailed Dual-Disc Manure Spreader is built for efficient transport and uniform distribution of solid fertilizers in agricultural operations. The machine features a trailed hopper with a chain-board feeding system and a rear-mounted dual-disc spreading unit. Materials are conveyed to the rear and discharged by rotating discs for consistent coverage across fields.

Key Features and Advantages

• 8m³ Hopper Capacity: larger load reduces reloading frequency during field work.
• Rear Dual-Disc Spreading System: adjustable spreading width to match field requirements and product type.
• Chain-Board Feeding: continuous material feed from hopper to spreading unit for even application.
• 6–12 m Spreading Width: suitable for wide-area fertilization operations.
• Trailed Configuration: towed by tractors; recommended power 80 HP or above.
• Mechanical Application: reduces manual handling and improves operational consistency.

Applications
Suitable for:

• Agricultural fields
• Farm fertilization tasks
• Small to large-scale cropping systems

Applicable materials:

• Livestock and poultry manure
• Organic fertilizers
• Compound/granular fertilizers

Operation Instructions and Safety Notes
Pre-operation inspection: Verify secure connection between spreader and tractor. Check hitch pins, tyres, wheel hubs, spreading discs, disc blades and drive components for damage or looseness.
Loading and transportation safety: Do not exceed rated hopper load. Travel at appropriate speed for field conditions and material characteristics.
Operating safety: Adjust disc speed and spreading width to suit fertilizer type and target application rate. Monitor spreading pattern and make adjustments as needed. Avoid overloading which can impair towing stability and spreading performance.
Maintenance precautions: Remove residual fertilizer after use. Use water for cleaning where appropriate, avoiding ingress into transmission and any electrical parts.

Maintenance Recommendations

• Clean hopper and spreading unit after each operation to limit corrosion.
• Inspect disc blades and transmission parts regularly; replace severely worn components.
• Keep spreading and drive components free of buildup and in serviceable condition.
• Store in a dry, ventilated area for long-term storage to minimize moisture and rust.

Technical Specifications

• Product Type: Hydraulic Trailed Dual-Disc Manure Spreader
• Required Power: 80 HP or above
• Overall Dimensions: 5600×2300×2320 mm
• Hopper Dimensions: 3855/3210 × 1800/1195 × 1140 mm
• Hopper Volume: 8m³
• Maximum Load Capacity: 10000 kg
• Spreading Device Type: Rear-mounted dual disc
• Fertilizer Feeding Method: Chain-board pushing
• Spreading Width: 6–12 m
• Track Width: 1750 mm
• Tire Specification: 16/70-20
• Number of Tires: 2
• Operating Method: Rear spreading
• Structure Type: Hopper body
