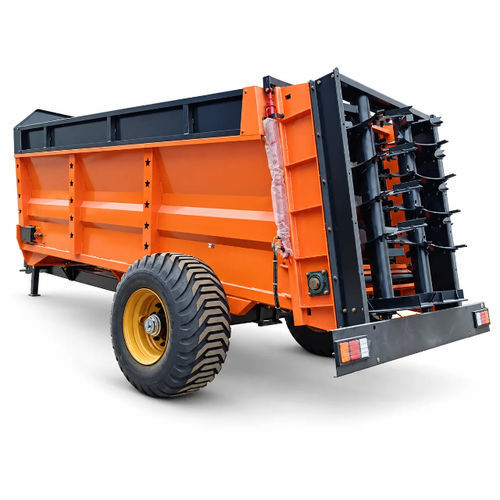

Towed manure spreader

verticals beaterssingle-axle

Product Overview
The 10m³ Twin Vertical Auger Manure Spreader is designed for spreading solid agricultural materials in field operations. It is tractor-trailed and uses a hydraulic-powered material feeding system together with a rear-mounted twin vertical auger spreading mechanism. During operation, the conveyor chain moves material toward the rear of the hopper. The twin vertical augers break up and spread the material, while the feeding speed can be adjusted through a flow-control valve to match different spreading requirements. The machine is suitable for large farms, ranches, grasslands and other supported agricultural applications.

Key Features and Advantages

• Twin Vertical Auger Spreading System: Rear-mounted twin vertical augers break up and spread materials such as dry or wet manure, lumpy manure, organic fertilizer and granular fertilizer. The auger blade arrangement supports material breakup and spreading.
• Hydraulic-Powered Material Feeding: Feeding system driven by the tractor hydraulic output; conveyor chain automatically moves material toward the rear spreading unit. Feeding speed adjustable via a flow-control valve.
• Adjustable Spreading Operation: Spreading settings adjustable according to material condition and application requirements; spreading width specified as 8-16m.
• 48 High-Manganese-Steel Auger Blades: Twin vertical auger system uses 48 replaceable blades made of high-manganese steel arranged in a stepped pattern to aid breakup and spreading.
• High-Strength Carbon Steel Hopper: Hopper constructed from high-strength carbon steel suitable for agricultural spreading applications.
• Five-Stage Paint Surface Treatment: Shot blasting, sandblasting, abrasive blasting, primer and topcoat — five-stage paint process for surface durability.

Applications

• Suitable for: Large farms, Ranches, Grasslands
• Applicable materials: Dry manure, Wet manure, Lumpy manure, Livestock manure, Organic fertilizer, Granular fertilizer, Compound fertilizer, Sand, Lime

Operation Instructions and Safety Notes
Pre-operation inspection: Check the connection between spreader and tractor (hitch, drawbar) for damage, deformation or looseness; check tire pressure and wear; inspect chassis, hydraulic hoses and valves for secure connections and leakage; confirm hydraulic drive can operate vertical augers and conveyor chain; check augers, blades, conveyor chain, discharge gate and adjustment components before operation.
Loading and transportation safety: Avoid overloading or exceeding working load of conveyor chain and vertical augers; ensure tractor–spreader connection is secure before moving the machine.
Operating safety: Control tractor travel speed according to material type, required application rate and spreading conditions; adjust vertical auger speed, conveyor-chain speed and discharge-gate opening according to fertilizer condition and spreading requirement; observe spreading result during operation and adjust settings when necessary.
Maintenance precautions: After each operation remove material remaining in the hopper, on the vertical augers and on the conveyor chain; water may be used for cleaning but avoid allowing water to enter electrical components and key transmission components.

Maintenance Recommendations

• Clean residual fertilizer from the hopper, vertical augers and conveyor chain after each spreading operation.
• Inspect vertical auger blades, conveyor chain and gearbox regularly for wear; replace seriously worn components when necessary.
• Keep hydraulic connections and valves in good condition and check for leakage before use.
• For long-term storage, keep the spreader in a dry, well-ventilated place to reduce the risk of moisture and rust.
• Release pressure from the hydraulic system before long-term storage.

Technical Specifications

• Product Type: Hydraulic Trailed Twin Vertical Auger Manure Spreader
• Required Tractor Power: 100HP or above
• Overall Dimensions: 7500x2900x2650mm
• Hopper Volume: 10m³
• Spreading Device Type: Rear-mounted twin vertical auger
• Material Feeding Method: Chain plate pushing (conveyor chain)
• Spreading Width: 8-16m
• Number of Auger Blades: 48 blades, high-manganese steel (stepped pattern, replaceable)
• Brake System: Air brake
• Tire Specification: 500/60-22.5
• Track Width: 2350mm
• Number of Tires: 2
• Number of Axles: 1
• Operating Method: Rear spreading
• Hopper Material: High-strength carbon steel
• Paint Surface Treatment: Shot blasting, sandblasting, abrasive blasting, primer and topcoat (five-stage process)
