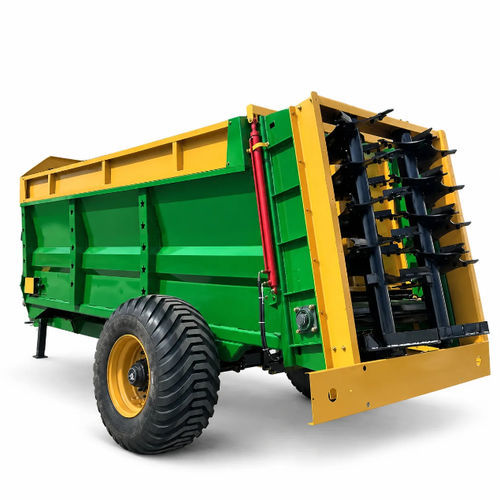

Towed manure spreader 2FGH-8

mountedverticals beaterssingle-axle

Product Overview
The 8 m³ hydraulic trailed twin vertical auger manure spreader 2FGH-8 is built to transport, break up and evenly distribute solid and semi-solid agricultural materials. Tractor-hauled, it uses rear-mounted twin vertical augers and a chain-driven feeding system powered by the tractor hydraulic output. Suitable for large farms, pastures and grassland where controlled feed and wide-area spreading are required.

Key Features and Advantages
Twin Vertical Auger Spreading System
Rear-mounted twin vertical augers fragment and propel material rearward. Staggered auger flights improve breakup uniformity and simplify blade replacement.

Tractor Hydraulic-Powered Material Feeding
The conveyor chain is driven by tractor hydraulics; conveying speed is adjustable via a control valve to match material and application rate.

Adjustable Material Discharge
Large-flow discharge gate and speed control valve enable precise adjustment of output for different spreading requirements.

High-Manganese-Steel Auger Blades
Spreading unit fitted with 48 high-manganese-steel blades for abrasion resistance and long service intervals.

High-Strength Carbon Steel Hopper
Hopper constructed from high-strength carbon steel to withstand agricultural loading and transport.

Multi-Stage Surface Treatment
Paint finish includes shot blasting, sandblasting, abrasive blasting, primer and topcoat for enhanced corrosion protection.

Suitable for Different Material Conditions
Designed for dry and wet manure, lumpy manure, organic and granular fertilizers, sand and lime to support varied spreading tasks.

Dimensions & Capacity
Overall Dimensions: 6500x2600x2700 mm
Hopper Volume: 8 m³
Spreading Width: 8–16 m

Applications

• Large farms
• Pastures
• Grassland

Applicable materials

• Dry and wet manure
• Lumpy manure
• Organic fertilizer
• Granular fertilizer
• Sand
• Lime

Operation Instructions and Safety Notes
Pre-operation inspection
Verify hitch and drawbar connections, tire condition and pressure, chassis integrity and hydraulic hose connections. Inspect vertical augers, blades, conveyor chain, discharge gate and adjustment mechanisms prior to use.

Loading and transportation safety
Do not exceed rated load or operating limits of the spreader, conveyor chain or auger system. Overloading affects tow vehicle stability and spreading performance.

Operating safety
Adjust tractor travel speed, auger and conveyor speeds and discharge opening to suit material type and required application rate. Monitor spreading pattern and adjust as necessary.

Maintenance precautions
Remove residual material from hopper, augers and conveyor after use. Use water for cleaning but avoid ingress to electrical components and key transmissions. Release hydraulic pressure before long-term storage.

Maintenance Recommendations

• Clean residual material after each use to reduce corrosion.
• Regularly inspect auger blades, conveyor chain and gearbox; replace heavily worn parts.
• Check hydraulic hoses, fittings and valves frequently to prevent leaks.
• Store the spreader in a dry, ventilated area during prolonged inactivity.
• Release hydraulic pressure before extended storage.

Specifications

• Model: 2FGH-8
• Product Type: Trailed Twin Vertical Auger Manure Spreader
• Required Tractor Power: 80 HP or above
• Overall Dimensions: 6500x2600x2700 mm
• Hopper Volume: 8 m³
• Spreading Device Type: Rear-mounted twin vertical auger
• Fertilizer Feeding Method: Chain plate pushing
• Spreading Width: 8–16 m
• Number of Auger Blades: 48, high-manganese steel
• Tire Specification: 400/50-22.5
• Track Width: 2050 mm
• Number of Tires: 2
• Number of Axles: 1
• Operating Method: Rear spreading
• Hopper Material: High-strength carbon steel
• Paint Surface Treatment: Shot blasting, sandblasting, abrasive blasting, primer and topcoat
