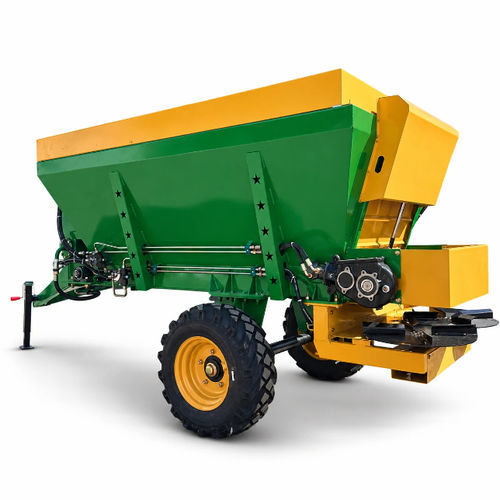

Towed manure spreader

single-axle

Product Overview
The HUIFU hydraulic trailed dual-disc manure spreader is engineered for even distribution of solid fertilizers across agricultural plots. It features a 3 m³ hopper, chain-board feeding and a rear dual-disc spreading unit. The machine is suitable for tractors from 40 HP and up and allows adjustment of spreading parameters to match fertilizer type and field conditions.

Key Features and Advantages

• Trailed disc-type spreading configuration with rear-mounted dual discs for field application.
• 3 m³ hopper reduces refilling frequency during operations.
• Rear dual-disc spreading unit provides adjustable and consistent distribution when set correctly.
• Chain-board pushing feeding ensures reliable material delivery from hopper to spreader.
• Adjustable spreading width from 6 to 12 m to accommodate different fertilizers and field conditions.
• Maximum load capacity 5,000 kg — avoid overloading to preserve performance and safety.
• Mechanized spreading reduces manual handling and labor requirements.

Overall Dimensions and Capacity
Overall Dimensions: 4600 × 1700 × 1770 mm
Maximum Load Capacity: 5,000 kg
Hopper Volume: 3 m³
Spreading Width: 6–12 m

Applications

• Agricultural fields
• Small and medium farms
• Large planting bases and production areas

Applicable Materials

• Livestock and poultry manure
• Organic fertilizer
• Compound fertilizer

Operation Instructions and Safety Notes
Pre-operation Inspection
Verify hitch and towing connections; ensure pins, hooks and components are secure and undamaged. Check tire pressure and wheel hubs. Inspect spreading discs, blades and transmission parts and remove foreign objects that could obstruct rotation.

Loading and Transportation Safety
Do not exceed rated hopper load. Overloading can impair towing, spreading performance and equipment condition. Keep load within specified capacity during transport and field work.

Operating Safety
Adjust towing speed according to fertilizer type, desired spreading width and field conditions. Set disc speed and spreading width appropriately and monitor spreading uniformity during operation; adjust as needed.

Maintenance Precautions
After each use, remove residual fertilizer from hopper and spreading unit. Cleaning with water is permitted but prevent water ingress into electrical or transmission components.

Maintenance Recommendations

• Clean residual material from hopper and spreader after each operation to reduce corrosion.
• Inspect disc blades and transmission parts regularly; replace severely worn components.
• Keep transmission and rotating parts in serviceable condition; check for abnormal wear or blockages during inspections.
• For long-term storage, keep the spreader in a dry, ventilated place to minimize moisture and rust.

Technical Specifications

• Product Type: Hydraulic Trailed Dual-Disc Manure Spreader
• Matching Power: 40 HP or above
• Overall Dimensions: 4600 × 1700 × 1770 mm
• Hopper Dimensions: 2690/2160 × 1500/855 × 850 mm
• Hopper Volume: 3 m³
• Maximum Load Capacity: 5,000 kg
• Spreading Device Type: Rear dual disc
• Fertilizer Feeding Method: Chain-board pushing
• Spreading Width: 6–12 m
• Track Width: 1410 mm
• Tire Specification: 10.75-15
• Number of Tires: 2
• Operating Method: Rear spreading
• Structure Type: Box body
