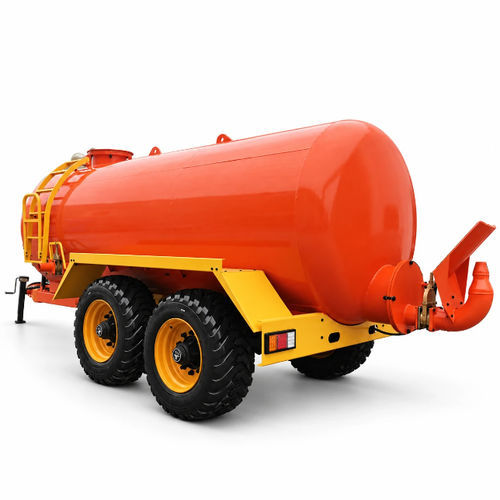

Towed fertilizer spreader 2F-8Y

liquid

Product Overview
The 2F-8Y 8 m³ liquid manure/ferilizer spreader is a tank-type, trailed machine designed for transporting and applying liquid fertilisers or manure in agricultural fields. It integrates a self-priming suction and spraying system driven by tractor hydraulics and is configured for rear spraying with an adjustable working width.

Key Features and Advantages

• Tank-type construction for secure storage and dosing of liquid products.
• Integrated self-priming suction and spraying unit for simplified operation.
• Full-hydraulic control of spraying and pumping functions for consistent application.
• Adjustable spraying width to match field patterns and crop requirements.
• Trailed design compatible with standard agricultural tractors (above 90 HP recommended).

Technical Specifications (summary)

• Product Type: Liquid Manure/Fertilizer Spreader
• Model: 2F-8Y
• Tank Volume: 8 m³
• Maximum Load Capacity: 8000 kg
• Power Requirement: Above 90 HP
• Tank Dimensions: 4262 × φ1612 mm
• Overall Dimensions: 6122 × 2248 × 2033 mm
• Spraying Device: Self-priming and spraying integrated system
• Operating Method: Rear spraying
• Spraying Width: ≥10 m
• Control Method: Full hydraulic operation
• Connection Type: Trailed
• Tire Specification: 16/70-20

Applications

• Field application of liquid manure or liquid fertiliser in arable and forage crops.
• Mechanised spreading where controlled dosing and uniform coverage are required.

Applicable Materials

• Liquid manure, diluted slurry and compatible liquid fertilisers (ensure particle-free and appropriate viscosity).

Operation Instructions and Safety Notes

• Pre-operation: inspect hoses, nozzles, valves and pump for leaks, blockages or damage before each use.
• Tank cleaning: remove residues and sediments prior to operation to avoid clogging and corrosion.
• Fertiliser selection: use liquid products compatible with pump and nozzle specifications; avoid high-viscosity or solid-containing mixtures.
• Operational safety: operate at stable tractor speeds, monitor spraying pattern; stop and inspect on abnormal noise, leakage or blockage.
• Post-operation: flush tank, lines and spray components after use to prevent corrosion and contamination.

Maintenance Recommendations

• Clean the equipment after each use and flush the hydraulic circuits as recommended.
• Regularly check hoses, valves, pumps and nozzles for wear and blockages.
• Inspect seals and connections for leaks before use.
• Store the machine in a dry ventilated area when not in use.
• Apply corrosion protection to metal parts during long-term storage.

Technical characteristics / specifications

• Product Type: Liquid Manure/Fertilizer Spreader
• Tank Volume: 8 m³
• Maximum Load Capacity: 8000 kg
• Power Requirement: Above 90 HP
• Tank Dimensions: 4262 × φ1612 mm
• Overall Dimensions: 6122 × 2248 × 2033 mm
• Spraying Width: ≥10 m
• Spraying Device Type: Self-priming and spraying integrated system
• Control Method: Full hydraulic operation
• Operating Method: Rear spraying
• Connection Type: Trailed
• Tire Specification: 16/70-20
