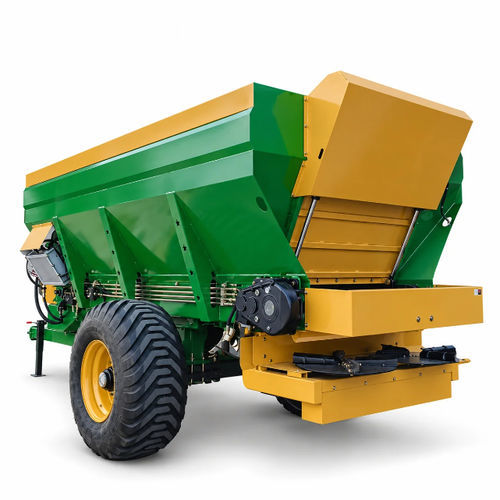

Towed manure spreader

single-axle

Product Overview
The 12 m³ Hydraulic Trailed Dual-Disc Manure Spreader is built for efficient transport and uniform spreading of solid fertilizers in mechanized agricultural operations. Designed for tractor towing, it integrates a large-capacity hopper, chain-board feeding system and rear dual-disc spreading unit. The hydraulically driven discs deliver adjustable spreading patterns to match fertilizer type and field conditions.

Key Features and Advantages

• 12 m³ large-capacity hopper to reduce refill frequency and improve productivity.
• Rear dual-disc spreading system for uniform distribution across wide working widths.
• Chain-board push feeding ensures continuous, controlled material flow to the spreading unit.
• Adjustable spreading width: 6–12 m to suit different fertilizer types and field requirements.
• Trailed configuration for compatibility with a range of tractors and larger-area operations.
• Compatible with solid fertilizers including livestock manure, organic fertilizers and compound fertilizers.

Applications

• Field fertilizer application
• Farm manure spreading
• Planting and pre-plant fertilization operations

Operation Instructions and Safety Notes

• Pre-operation: verify secure hitching to the tractor, inspect pins, hooks, tires, hubs, spreading discs, disc blades and transmission for integrity. Clear any obstructions from the spreading mechanism before use.
• Loading and transport: do not exceed rated load capacity. Ensure towing connection and wheel/tire condition are secure prior to movement.
• Operating safety: adjust towing speed, disc speed and spreading width according to fertilizer characteristics and field conditions. Monitor spreading pattern and avoid overloading the feeder.
• Maintenance safety: remove material blockages before performing checks. Avoid introducing water into electrical or transmission components during cleaning.

Maintenance Recommendations

• Clean residual fertilizer from the hopper and spreading components after each use to reduce corrosion.
• Regularly inspect disc blades and transmission parts; replace severely worn components.
• Keep rotating and drive components clean and lubricated as per maintenance schedule.
• Store the spreader in a dry, ventilated location for long-term preservation.

Technical Specifications

• Product Type: Hydraulic Trailed Dual-Disc Manure Spreader
• Required Tractor Power: 120 HP or above
• Overall Dimensions: 5600 x 2300 x 3100 mm
• Hopper Dimensions: 3855/3210 × 1800/1195 × 1540 mm
• Hopper Capacity: 12 m³
• Maximum Load Capacity: 18000 kg
• Spreading Device Type: Rear Dual Disc
• Fertilizer Feeding Method: Chain-board push feeding
• Spreading Width: 6–12 m
• Track Width: 2030 mm
• Tire Specification: 500/60-22.5
• Number of Tires: 2
• Working Method: Rear spreading
• Structure Type: Hopper body
