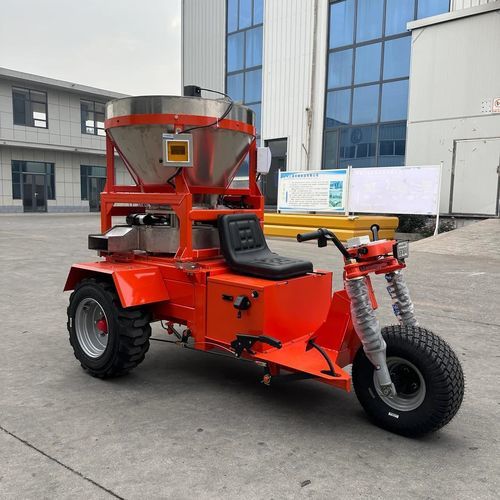

Self-propelled fertilizer spreader

solidgranularwith GPS

Short Description
The electric three-wheel fertilizer spreader integrates a compact electric chassis, a 0.3 m³ 304 stainless steel hopper, dual 2000 W motors and a 72 V/100 Ah battery with an adjustable 2–10 m spray-type spreading system for precision application in fields, orchards and greenhouses.

Product Overview
Designed for controlled distribution of solid fertilizers (chemical, organic and granular), this electric spreader offers low-noise operation, energy-efficient electric drive and an intelligent numerical fertilizer control system. GPS positioning and remote monitoring support farm-level traceability and operational planning.

Key Features and Advantages
Dual 2000 W Electric Power System
Separate 2000 W drive and 2000 W spreading motors ensure independent power for traction and material distribution.
Compact Three-Wheel Agricultural Chassis
Three-wheel layout for tight-turn manoeuvres and flexible access in rows, orchards and greenhouse aisles.
304 Stainless Steel 0.3 m³ Hopper
Corrosion-resistant hopper simplifies loading, cleaning and handling of various fertilizer types.
Intelligent Numerical Fertilizer Control
Programmable control allows repeatable dosing and improved fertilizer utilisation across passes.
Adjustable 2–10 m Spreading Width
Spray-type spreading system adjustable to crop and field requirements for targeted coverage.
Remote Monitoring and GPS Positioning
Remote telemetry and GPS enable equipment tracking, work mapping and integration with precision farming workflows.
Electric Ball Screw Discharge
Electric ball-screw feed provides controlled, clog-resistant discharge from hopper to spreader.

Technical Specifications

• Product type: Electric three-wheel fertilizer spreader
• Driving motor: 2000 W
• Spreading motor: 2000 W
• Battery: 72 V / 100 Ah
• Overall dimensions: 2.334 × 1.254 × 1.669 m
• Hopper capacity: 0.3 m³ (304 stainless steel)
• Weighing system: 4 sets with digital display
• Remote monitoring: Overseas version (telemetry)
• Spreading method: Spray type
• Spreading width: 2–10 m
• Tires: Front 18×9.50-8; Rear 23×8.5-12
• Number of tires: 3
• GPS positioning: Available
• Discharge: Electric ball screw pushing system

Applications

• Agricultural fields
• Fruit orchards
• Greenhouses and planting areas
• Livestock farm fertilising areas

Applicable materials

• Chemical fertilizer
• Organic fertilizer
• Granular fertilizer

Operation Instructions and Safety Notes

• Pre-operation: verify battery charge, electrical connections, tires, brakes, steering and spreading mechanism before each use.
• Loading: use compatible solid fertilizers; load evenly and remove large foreign objects to avoid blockages.
• Spreading adjustment: set width and dose according to material, crop and field conditions; perform a short test pass before full operation.
• Safety: keep personnel clear of the spreading zone; stop motors before clearing blockages; operate at controlled speed on slopes and uneven ground.
• Electrical system: use specified charger and protect connectors, telemetry and GPS from damage during cleaning and storage.

Maintenance Recommendations

• Clean fertilizer residues from hopper and spreading components after each operation.
• Regularly inspect spreading mechanism, electric ball screw and drive transmission.
• Check battery condition and electrical components before long-term storage.
• Store the machine in a dry, ventilated location and protect telemetry/GPS units.
