Self-propelled manure spreader 2FGH series

vineyardcompostwith speed-governed flow

Product overview

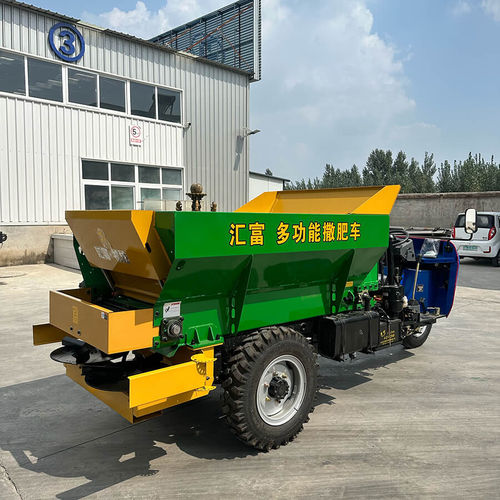

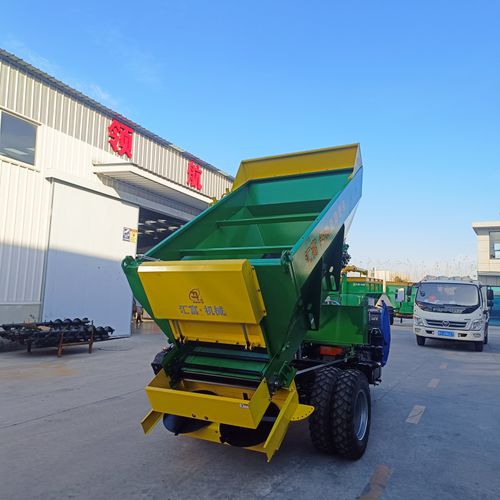

This self‑propelled three‑wheel manure and fertilizer spreader (model 2FGH-1.5SL) combines transport and application in one pass. It operates without a tractor and can distribute organic fertilizers, farm manure, compost and various animal manures via either a screw auger or twin‑disc spreading unit. The compact, manoeuvrable design is suited to flat fields, orchards, vineyards, greenhouses, slopes and hilly terrain, improving efficiency and reducing labour requirements compared with manual spreading.

Construction and drive
The hopper is manufactured as a single welded piece and reinforced with ribs to resist deformation. Surface treatment includes polishing, phosphating, primer and topcoat for improved corrosion and alkali resistance. The chassis uses a Wuzheng double‑beam frame with electric start and power steering; typical power unit is a Changchai diesel (China IV). The system is hydraulically controlled: engine‑driven gear pump, hydraulic tank and reducer controlling the chain conveyor. A reinforced U‑shaped scraper, mining‑grade chains and sprockets ensure high strength and durability. A double‑cylinder hydraulic rear door prevents accumulation; a hydraulic motor drives the spreading disc and a flow control valve adjusts spreading width and feed speed.

Spreading & feeding
Spreading options: twin‑disc or screw auger (depending on configuration). Feeding: chain conveyor with uniform delivery to the spreading unit. Typical adjustable working width 6–12 m via hydraulic flow control; conveying speed is adjustable to match material and field conditions.

Features

• Self‑propelled three‑wheel drive—no tractor needed
• Compact design for narrow rows and greenhouse use
• Hydraulically adjustable spreading width (typ. 6–12 m)
• Uniform distribution with chain feed and reinforced U scraper
• Simple operation and easy maintenance

Applications

• Small farms and family holdings
• Orchards and vineyards with narrow rows
• Greenhouses and confined cultivation areas
• Hilly terrain, slopes and grasslands

Optional configurations

• Manual rear gate
• Single‑cylinder hydraulic rear gate
• Reinforced / heavy‑duty tires

Specifications (summary)
Model: 2FGH-1.5SL
Capacity: 1.5 m³
Overall dimensions (L×W×H): 4200×1400×1500 mm
Hopper dimensions: 1980×1400×660 mm
Recommended power: 32 HP
Maximum load: 2000 kg
Material: carbon steel / manganese steel
Working width: 6–12 m (adjustable)
Spreading system: twin‑disc or screw auger
Feeding: chain conveyor
Drive: diesel three‑wheel self‑propelled

Precautions & maintenance

• Provide operator training on controls, safety and spreading adjustments.
• Inspect body, chassis, tires, fluid levels and feeding system before use.
• Do not exceed rated load; distribute material evenly during transport.
• Adjust width, speed and angle according to fertilizer type, granularity and moisture; stop and inspect in case of blockage or irregular spreading.
• Clean residues after use, avoid water ingress into electrical/transmission parts, perform regular lubrication and service.
