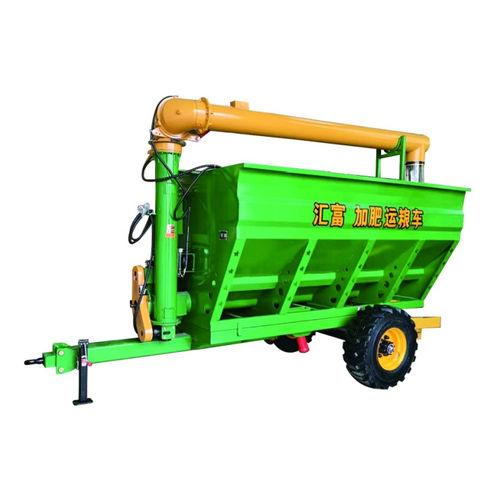

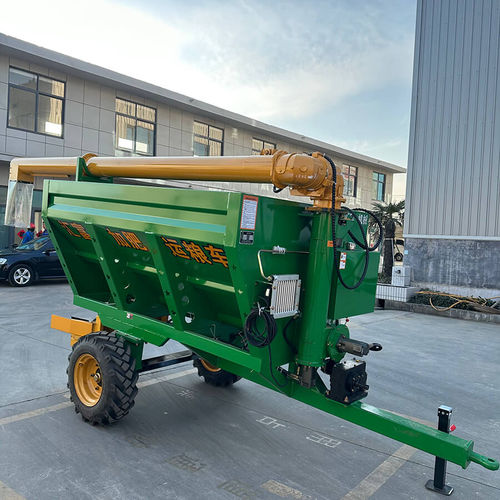

Towed grain Cart 2F series

fertilizer

Product Overview
The 2F series grain cart is an agricultural transport and spreading machine designed for efficient on-field grain handling and fertilization. Models range from 3 m³ to 20 m³ hopper capacity and are compatible with a wide range of tractor horsepower and field operations.

Functions

• Transportation: Large-capacity hopper for loading, hauling and dumping granular crops (rice, wheat, corn, rapeseed). Reduces return trips and speeds up harvest logistics for large fields.
• Grain unloading & filling: Hydraulic auger with vertical lift and 360° rotation for precise unloading and hopper refilling.
• Fertilization: Selected models include rear spinning discs or double-disc spreaders (adjustable spreading width, typically 3–15 m) for fertilizer distribution.

Advantages

• Labor efficiency: High transport speed reduces labor and turnaround time during harvest and spreading operations.
• Durability: Reinforced steel construction and heavy-duty tires ensure high load capacity and field stability.
• Reliability: Quality components (bidirectional transmissions, hydraulic systems) minimize downtime in peak seasons.
• Operational flexibility: Multiple models and optional equipment (spreading discs, brake axles, wide tires) to match tractor power and field conditions.

Technical Parameter
No. | Item | Unit | 3m³ tricycle grain cart | 3m³ traction grain cart | 6m³ traction grain cart | 8m³ traction grain cart | 10m³ traction grain cart | 12m³ traction grain cart | 20m³ traction grain cart
1 | Model | / | 2F-3LJY | 2F-3SX | 2F-6SX | 2F-8SX | 2F-10SX | 2F-12SX | 2F-20SX
2 | Hopper Capacity | m³ | 3 | 3 | 6 | 8 | 10 | 12 | 20
3 | Supporting Power | hp | 35 | ≥40 | 80-200 | 100-240 | 120-240 | ≥150 | ≥200
4 | Spreading Width | m | 3-8 | 3-12 | 3-12 | 3-12 | 6-12 | 6-12 | 6-12
5 | Overall Dimension | mm | 4375*1700*2345 | 5103*1766*2248 | 4955*2000*2800 | 4955*2000*2800 | 5670*2440*3360 | 5670*2440*3360 | 6950*3045*3635
6 | Hopper Inside Dimension | mm | 2680*1600 / 220*1005 | 2400*1760 / R105*1090 | 3200*2000*1385 | 3200*2000*1685 | 4000*2344*1566 | 4000*2344*1774 | 5040*2500 / R188.5*2185
7 | Spreading Device | / | / | Single Disc | Single Disc | Single Disc | Double Disc | Double Disc | Double Disc
8 | Grain conveying method | / | / | Hydraulic auger push | Hydraulic auger push | Hydraulic auger push | Hydraulic auger push | Hydraulic auger push | Hydraulic auger push
9 | Tire | / | / | front 6.00-14, rear 7.00-16 | 10.00-15 | 14-17.5 | 14-17.5 | 400/55-22.5 | 500/60-22.5
10 | Tire No. | pc | 5 | 2 | 2 | 2 | 2 | 2 | 2
11 | Fertilizer conveying method | / | / | Chain Scraper Push | Chain Scraper Push | Chain Scraper Push | Chain Scraper Push | Chain Scraper Push | Chain Scraper Push
12 | Track Width | mm | 1840 | 1430 | 1570 | 1840 | 2050 | 2050 | 2050
13 | Max.height of grain discharge | mm | 3500 | 3500 | 3900 | 3900 | 4100 | 4100 | 4500
14 | Upper Pipe Rotatory Degree | ° | 360 | 360 | 360 | 360 | 360 | 360 | 360
15 | Max.Load Capacity | kg | 2100 | 3000 | 4800 | 6400 | 8000 | 9600 | 16000

Precautions for use

• 1. Operation: Operators must be familiar with driving, loading/unloading, high-altitude pipe rotation and lifting; understand hydraulic, transmission and conveying systems.
• 2. Safety inspection: Before each use check tire pressure, brakes, lights, auger connections, rotation and lifting mechanisms, and for leaks or blockages.
• 3. Loading precautions: Load evenly to avoid center-of-gravity shifts; do not exceed rated capacity.
• 4. Unloading operation: Keep personnel and obstacles clear of discharge area; control auger rotation and lift speed; stop immediately if abnormal behavior occurs.
• 5. Maintenance: Regular maintenance (oil changes, air filter cleaning, bolt checks); monitor hydraulic oil; clean residual material after use to prevent corrosion and blockage.
• 6. Adverse weather: Clean after use in wet conditions to prevent rust; avoid unloading in strong winds to prevent scattering.

Characteristics / Technical specifications

• Series: 2F series (models: 2F-3LJY, 2F-3SX, 2F-6SX, 2F-8SX, 2F-10SX, 2F-12SX, 2F-20SX).
• Hopper capacities: 3 m³ (tricycle), 3 m³ (traction), 6 m³, 8 m³, 10 m³, 12 m³, 20 m³.
• Supporting power: 35 hp up to ≥200 hp depending on model.
• Spreading width: typically 3–12 m; some models offer 6–12 m or adjustable 4–15 m with specific spreaders.
• Conveying: hydraulic auger for grain; chain-scraper push for fertilizer.
• Spreading device: single disc on smaller models, double disc on larger models.
• Tire examples: front 6.00-14 & rear 7.00-16 for small units; 400/55-22.5 or 500/60-22.5 for large units.
• Max discharge height: 3500–4500 mm depending on model.
• Upper pipe rotation: 360° rotation on applicable models.
• Max load capacity (kg): 2100; 3000; 4800; 6400; 8000; 9600; 16000.
