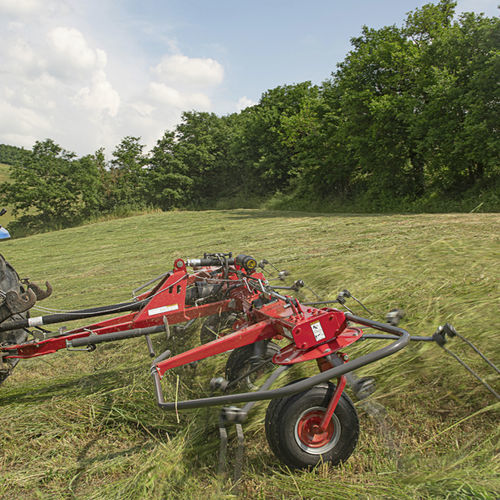

Tractor-mounted tedder XT 5 series

with hydraulic adjustment

Overview
When it comes to producing high-quality hay, control of every operation matters. Sitrex, active since 1970, designs machines to preserve forage nutritive value from harvest to bale. The XT 5217 and XT 5819 rotary tedders provide wide working widths and compact transport dimensions for efficient field work and fast road transfer.

Key features

• Hydraulic central adjustment of the angle in working position
• Main frame fully boxed without the use of joints
• Adjustment of the angle of incidence for optimized crop flow
• Tire size 18×8,5-8 for stable field travel
• Wheel hub suitable for high-speed road transport
• Side protections assembled without welding for easy maintenance

Technical specifications (table)
Specifications | XT 5217 | XT 5819
Working width [m (ft)] | 5.2 (17'') | 5.8 (19')
Transport width [m (ft)] | 3.15 (10'3") | 3.35 (11')
Transport length [m (ft)] | 2.7 (9') | 2.7 (9')
N° rotors | 4 | 4
Rotors diameter [m (ft)] | 1.62 (5'3'') | 1.72 (5'6'')
Tires size | 18x8,5-8 | 18x8,5-8
Weight [Kg (lbs)] | 560 (1234) | 580 (1278)

Characteristics / technical specifications

• Model designation: XT 5217 / XT 5819
• Working width: XT 5217 — 5.2 m (17''), XT 5819 — 5.8 m (19')
• Transport width: XT 5217 — 3.15 m (10'3"), XT 5819 — 3.35 m (11')
• Transport length: 2.7 m (9') for both models
• Number of rotors: 4
• Rotor diameter: XT 5217 — 1.62 m (5'3''), XT 5819 — 1.72 m (5'6'')
• Tires: 18x8,5-8
• Weight: XT 5217 — 560 kg (1234 lbs), XT 5819 — 580 kg (1278 lbs)
