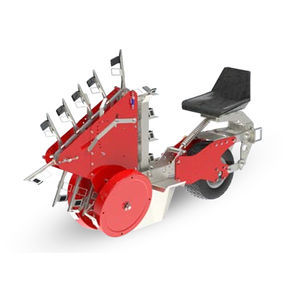

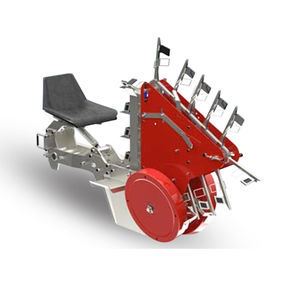

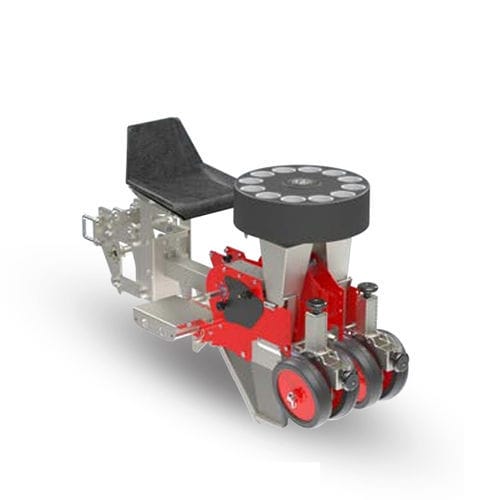

Vegetable transplanter TB12 series

nursery plantsautomatictowed

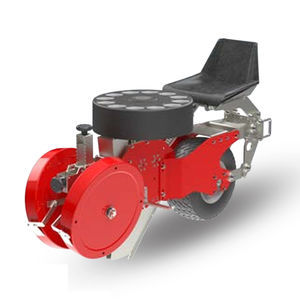

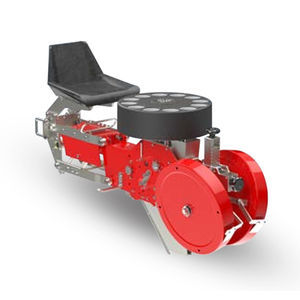

Mechanical transplanter machine with single rotary dispenser to 12 cups for double transplanting element (1 operator for 2 rows) for seedlings in plastic and polystyrène trays with conical or pyramidal shape root bail. Modular design: from 1 to 5 double-row transplant modules (more elements on request). Configurable for single or for double-row (twin line) transplants, customizable with various accessories. AVANT: Operator seat with integrated support on the frame. TWINDRIVE: Mechanical transmission with side wheels and hexagonal bar. REGULAR EQUIPMENT • Parallelogram on element and adjustable lifting wheels • Padded seat with backrest • Quick release furrower with self-cleaning ejector movement • Gear kit inter-plant distance change ADDICTIONAL OPTIONS • Localized fertilizer spreader system and phytosanitary (plant protection) micro-granulator • Systems for continuous and localized watering • Modular plant tray holder Systems • Systems for laying the dripping • More accessories for element and frame TYPE OF FRAME •F2, F3: Fixed frame with 2 and 3 tubolar steel •R2, R3: Rettangular fixed frame with 2 and 3 tubolar steel •P2: Folding frame with 2 tubolar steel •T2, T3: Telescopic frames with 2 and 3 tubolar steel • S3: Tranlating frames with 3 tubolar steel
