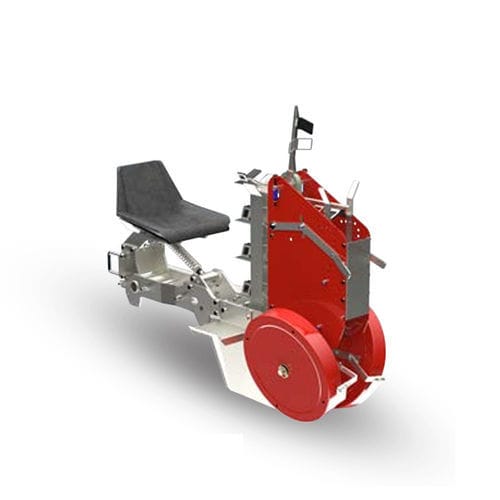

Vegetable transplanter TU40 AT

automatictowedmechanical

Mechanical transplanter machine with distributor of 4,5,8,10 pincers for seedlings in plastic and polystyrène trays with conical, cubic or pyramidal shape root bail. Modular design: from 1 to 6 transplanting elements (more elements on request). Configurable for single or double rows (twin line) transplants, customizable with various accessories. AVANT: Operator seat with integrated support on the frame. TWINDRIVE: Mechanical transmission with side wheels and hexagonal bar. REGULAR EQUIPMENT • Oscillating system with spring pressure on element and pressure wheels • Padded seat with backrest • Gear kit inter-plant distance change ADDICTIONAL OPTIONS • Localized fertilizer spreader system and phytosanitary (plant protection) micro-granulator • Systems for continuous and localized watering • Modular plant tray holder Systems • Systems for laying the dripping • More accessories for element and frame TYPE OF FRAME •F2, F3: Fixed frame with 2 and 3 tubolar Steel •R2, R3: Rettangular fixed frame with 2 and 3 tubolar Steel •P2: Folding frame with 2 tubolar Steel •T2, T3: Telescopic frames with 2 and 3 tubolar Steel • S3: Tranlating frames with 3 tubolar steel Possibility of manufacturing non-standard set-ups for différent number of row, for max inter-row distance and for max inter-double row distance
