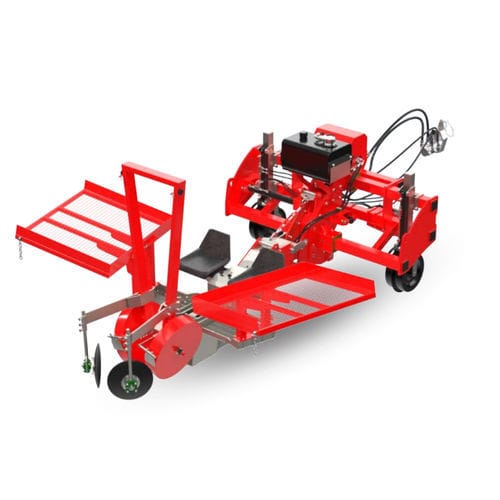

Tree transplanter TN00 AH

automatic1-rowtowed

Electro-hydraulic transplanter for medium/large-sized trees, designed for precision transplanting of trees with heights up to 180/200 cm, both with bare roots and in pots with diameters up to 20 cm or larger (on request). Possibility of combined transplanting with stakes. Configurable with various equipment, customizable with various accessories AVANT: Operator seat on the element with their back to the tractor HYDRODRIVE: Electro-hydraulic transmission with wheel or GPS/RTK systems. REGULAR EQUIPMENT • Fixed or shifting frame depending on the configuration, equipped with support wheels with hydraulic height adjustment. • Independent hydraulic system with 60-liter tank, PTO-driven pump, and solenoid valves for plant expulsion cylinder management. • Transplanting unit equipped with parallelogram for ground following, double operator seat with padding and backrest, pair of folding plant holder dim. 1500 x 1000 mm, iron press wheels dim. Ø 600 X 120 mm, pair ridging disk Ø400 mm. • All completion equipment and accessories excluded (transmission kit, furrower, ridging wheels, plant holder, etc.). SETUPS (Mandatory): Select the setup according to the number of rows, the in-row spacing and the frame REQUIRED SPECIFICATIONS (Mandatory): Select the key configurations to complete the basic functionality. ACCESSORIES: If needed add any desired accessories.
