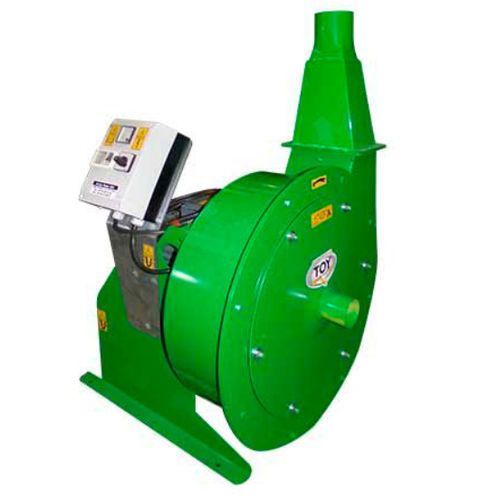

Feed crusher T series

These shredders suck, grind and push back (refoulement up to 60 meters). Equipped with 4, 6 or 8 blades, and 12 to 16 straight hammers. The casings are made of thick anti-deformation sheet metal and are resistant to abrasion for a longer. These shredders are manufactured in France by TOY Group. Note: all hammers are also manufactured by TOY Group. General features Fan shredders 2, 4, 6, 8 blades. Push back up to 60 meters. . Shredders 12 to 16 right hammers. Circular grid Rotation speed by model Grid flow – 4 mm: 600 to 2400 kg/h Crushed product backflow up to more than 60 metres backflow piping: 100 and 160 mm diameter No control box (see Electricity/Automation section) Debits: T2 from 800 to 1500 kg/h T3 from 1200 to 3000 kg/h T4 from 2500 to 5000 kg/h T5 from 5000 to 20000 kg/h (*Indicative flows: depending on cereals, humidity, granulometry and types of facilities) T-shredder models T2 grinder: Power 7.5 or 11 kW / 400 V / 4 pale (option 6 pale, or 8 pale) T3 shredder: Power 15, 18.5 and 22 kW / 400 V / 4 pale (options 6 pale, or 8 pale) T4 grinder: Power 30 and 37kW / 400 V / 4 pale (options 6 pale, or 8 pale) T5 shredder: Tractor power 100 to 150 hp / 4 pale Options: Available grids (in mm): 2 / 2.5 / 3 / 3.5 / 4 / 5 / 6 / 8 / 10 / 12 / 15 / 20 diameter Magnetic Separator Many options and accessories available see commercial documentation Crushers
