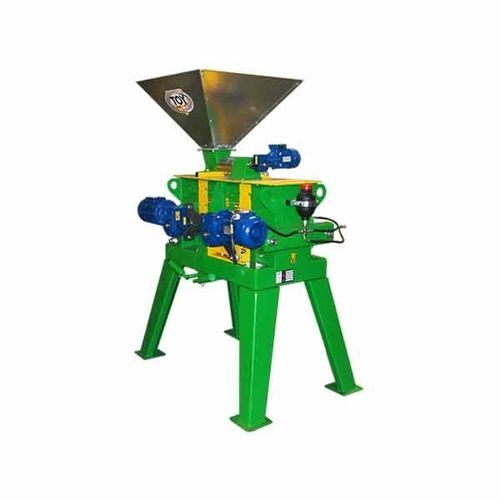

Grain mill

rollerstationaryelectrically-powered

With flows from 900 to 10200 KG/H for powers of 6 to 37 kW. TOY Group electric rolling mills are equipped with transcobloc cylinders of (diameter X L in mm) 500X250, 500X450, 500X650, 800X450 or 800X850. Hydraulic pressure between cylinders ranges from 3 to more than 15 tons and offers optimal and regular work quality and high flows. TOY GROUP ROLLING MILLS: THE TECHNIQUE Training by two groups: Independent geared motor cylinders drive. Industrial-series gearboxes. High torque geared motor, easy load restart. Technology without belts or chains, easy maintenance. High hydraulic pressure 3 to 15 tons: Tightening principle: 2 hydraulic jacks push the mobile cylinder on the fixed cylinder (from 3 to 15 tons of pressure). Cylinders supplying : hand pump tightening (control gauge) Precise adjustment of the cylinder spread. Fixed pressure for a regular work quality. Safe rolling: Hydraulic circuit with nitrogen sphere (cylinders kickback if abnormal pressure) Racing cylinders setting with double-stop anti-crash cylinders. Rolling mills equipped with sieve and magnet ramps. Scrapers installed to ensure cylinders cleanliness. TOY GROUP ROLLING MILLS: THE QUALITY Innovative large-diameter cylinders: Steel of heavy treated thickness. Intermediate flasks and reinforcement flasks guaranteeing solidity. A whole high precision balancing. diameter 500 to 800 mm provide the ideal angle of introduction(Nippel angle) for the passage of large seeds (peas or corn). Transcobloc-type technology: Preservation of tree strength and bending characteristics by seamless assembly (Transcobloc-type technology).
