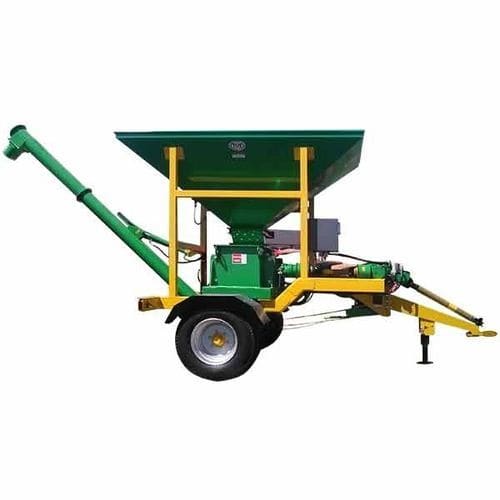

Grain mill

flakerollermobile

Road-approved. With dice flows from 3900 to 10200 KG/H. The TOY Group’s power-taking rolling mills are equipped with transcobloc cylinders of (X L in mm) 500X450, 500X450, 800X1050. The hydraulic pressure between cylinders is 4.1 of 15.2 tons and offers an optimal and regular working quality. Tractor power 70 and 130 hp. TOY GROUP FORCE-TAKING ROLLING MILLS: THE TECHNIQUE Characteristics of the force-taken models: Road chassis consisting of a chassis with 1 axle, 2 suspended wheels with brakes and arrow. Eye 50mm diameter. Road approval. Unloading by rigid flake screw or truck-type screw. Loading by bucket or big bag. Training by two groups: Independent geared motor cylinders drive. Industrial-series gearboxes. High torque geared motor, easy load restart. Technology without belts or chains, easy maintenance High hydraulic pressure 3 to 15 tons: Tightening principle: 2 hydraulic jacks push the mobile cylinder on the fixed cylinder (from 3 to 15 tons of pressure). Cylinders supplying : hand pump tightening (control gauge) Precise adjustment of the cylinder spread. Fixed pressure for a regular work quality. Safe rolling: Hydraulic circuit with nitrogen sphere (cylinders kickback if abnormal pressure) Racing cylinders setting with double-stop anti-crash cylinders. Rolling mills equipped with sieve and magnet ramps. Scrapers installed to ensure cylinders cleanliness.
