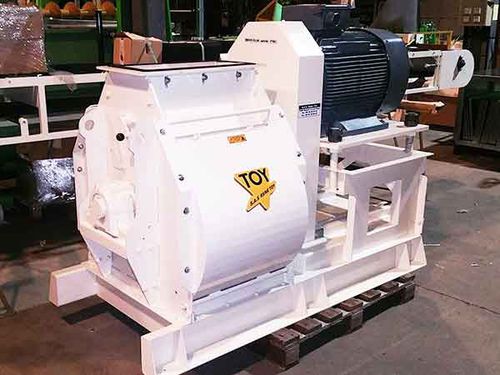

Feed crusher TNG series

Gravitational shredders at 108, 156, or 80 straight hammers, all three models in the range are available in direct transmission or by pulley/belt. The rotational speeds are 1500 tr, 2200 and 3000 rpm. These french-made TOY Group shredders are gravitating as standard with depressurized box option. The power has been provided at 22 to 110 kW. General features Gravitational shredder at 108, 156, or 80 straight hammers/adjustable rotation speed: 1500 tr, 2200 and 3000 rpm by direct elastic transmission or pulley/belt transmission Shredder T40NG 108 hammers (ep: 4mm) Shredder T60NG 156 hammers (ep: 4mm) Shredder T80NG 80 hammers (ep: 8mm) Two-item circular grid Rotation speed by model: 1500, 2200, 3000 rpm Powers from 22 to 110 kW No control box (see Electricity/Automation section) Orientation trap Direct elastic transmission OR Transmission pulley belt Exit by gravity / possible depressurization FLOW RATES: Pork Food: 4 to 15 tons/h. In Poultry and Cattle Food: 6.5 to 25 tonnes/h (*Indicative flows: depending on cereals, humidity, granulometry and types of facilities) TNG SHREDDER MODELS T40NG: 22 kW 1500tr/min or 3000tr/min T60NG: in versions 30, 36 or 45 kW 1500tr/min or 3000tr/min T80NG: in versions 75, 90 and 110 kW 1500tr/min or 3000tr/min SOME OPTIONS: Legs Power: variable speed screws and electronic regulation Two-speed engine (1500 – 3000 rpm) Extraction: by gravity (horizontal mixer) / by screw / by lift (pallets or buckets) / by depressurized box (large yield) Grid – 2 / 2.5 / 3 / 3.5 / 4 / 5 / 6 / 8 / 10 / 12 / 15 / 20 m diameter Electrical control cabinet (see Electricity/Automation section)
