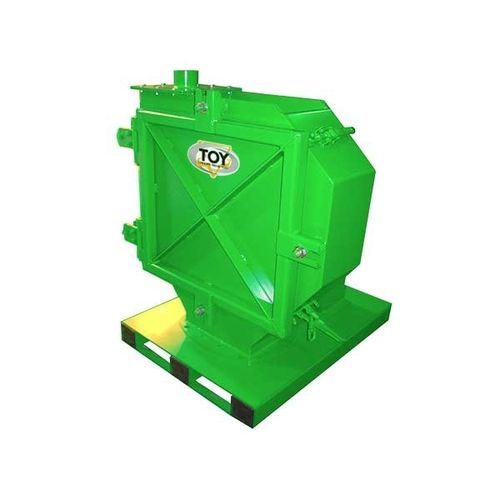

Feed crusher ETS series

ETS shredder range includes ETS, ETS-M and ETS+. These shredders are gravitational and – optional – depression. Equipped with 42 to 96 straight hammers for standard 11 to 37 kW powers, and up to 55 kW for special models. The casings are made of thick anti-deformation sheet metal and are resistant to abrasion for a longer. These shredders are manufactured in France by TOY Group. Note: all hammers are also manufactured by TOY Group. General features Gravitational or low-pressure shredders, equipped with 42 to 96 hammers. Allow large yields (flow-to-power ratio) on models in depression options. Circular grid Rotation speed by model Grid flow – 4 mm: 600 to 2400 kg/h No control box (see Electricity/Automation section) FLOW RATES: ETS from 1500 to 2500 kg/h / ETS-M from 2500 to 3500 kg/h / ETS from 3000 to 5000 kg/h (*Indicative flows: depending on cereals, humidity, granulometry and types of facilities) MODELS IN THE SHREDDERS AND ETS grinder: Model 11kw or 15kw / Rotor 42 hammers / Grid diameter of 0.8 to 30 mm / rotor: 440 mm. ETS M grinder: Model 18kw or 22kw / Rotor 64 hammers / Grid diameter of 0.8 to 30 mm / rotor: 635 mm. ETS-Model 30 kw, 36 kw or 45 kw / Rotor 96 hammers / Grid – 0.8 to 30 mm / rotor: 890 mm SOME OPTIONS: Air intake for Gravity Crusher (Facilitates the descent of the product by gravity) Gravitational magnet box with adjustment flap Grid – 2 / 2.5 / 3 / 3.5 / 4 / 5 / 6 / 8 / 10 / 12 / 15 / 20 mm Product input and simple gravity grinder air intake Entry boitard with magnets
