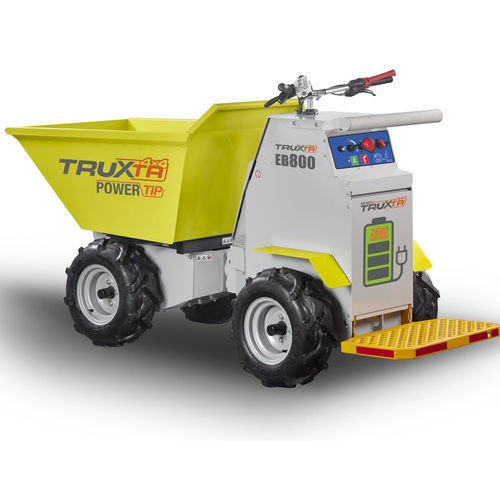

Articulated-chassis mini dumper EB800

wheeledelectric

Overview
The EB800 TRUXTA is an articulated, battery-powered 4x4 mini dumper with a 'Stand-On' operator position, designed for high payload-to-weight efficiency. It offers an 800 kg maximum payload with a 550 kg unladen weight, compact 894 mm working width and low-noise, zero-emission operation ideal for confined or noise-sensitive sites.

Key points

• Battery-powered driveline with hydraulic power tipping and a fast tipping cycle.
• Articulated chassis for maximum manoeuvrability in tight spaces.
• Zero emissions and quiet operation suitable for noise-sensitive environments.
• Regenerative braking system to extend battery life.
• Balanced compact unit capable of passing through standard doorways (894 mm / 3 ft).
• Easily transportable and compact for storage.
• Patented steering pivot drive system for superior manoeuvrability in a small footprint.
• Flotation tyres fitted as standard (option: turf tyres).
• Fail-safe dead-man brake system for operator safety.
• 4x4 drive system providing traction on varied terrain.

Specifications

• Model: Battery EB800 (4x4) 'Stand-On'
• Motor/Power: DC Motor 2 x 1400 W / 24 V
• Power Type: 4 x 6V AGM batteries
• Max Payload (Sand): 800 kg / 1800 lbs / 15.5 ft3 / 0.43 m3
• Payload (Concrete): 720 kg / 1600 lbs / 12.5 ft3 / 0.35 m3
• Unladen Weight: 550 kg / 1212 lbs
• Working Width: 894 mm (3 ft)
• Working Gradient: 10° continuous / 15° intermittent
• Drive & Controls: 2 x 24 V transaxle
• Brake System: Electrically operated brake with fail-safe dead-man handle
• Standard Tyres: Flotation (option: turf tyres)
• Forward / Reverse Travel Speed: 4 km/h (2.5 mph) / 2.5 km/h (1.5 mph)
• Noise Level (dB): ≤82

Media & Downloads
Operator's manual specific to the EB800 is available in the product documentation.
