Wheeled mini dumper POWER-TIP

electric

Overview

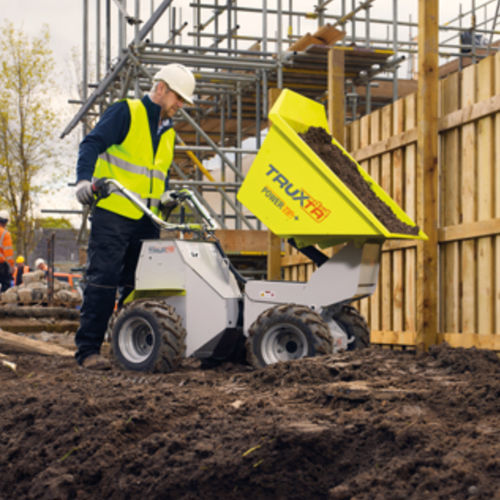

TRUXTA POWER-TIP is an electric tipping system for battery-powered TRUXTA minidumpers, providing smooth, controlled skip tipping and increased discharge height. Two variants are available: Power-Tip (standard) and Power-Tip-Plus (extended). A retrofit option allows upgrading existing TRUXTA electric minidumpers.

Features

• Electric-powered tipping ram for precise, controlled dumping
• Power-Tip raises skip discharge height to 252 mm — suitable for shuttering and formwork
• Power-Tip-Plus raises skip discharge height to 589 mm — suitable for loading trailers and conveyors
• Retrofit-ready design: can be fitted to existing TRUXTA battery minidumpers to increase discharge height

Technical specifications

• Skip discharge height (Power-Tip): 252 mm
• Skip discharge height (Power-Tip-Plus): 589 mm
• Tipping actuation: electric-powered tipping ram for smooth, controlled tipping
• Compatibility: designed for TRUXTA battery-powered mini dumpers; retrofit kit available
• Typical applications: shuttering, loading into trailers and conveyors
