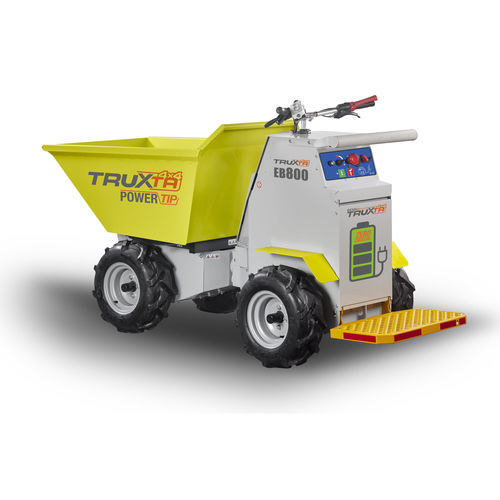

Articulated-chassis mini dumper EB800PTP

wheeledelectric

Overview
EB800PTP TRUXTA - Articulated 'Stand-On' (Mid Tip) battery-powered 4x4 mini dumper delivering high versatility and precise, low-effort operation. With an 800 kg payload and 550 kg unladen weight, the EB800PTP offers an excellent payload-to-weight ratio. It features hydraulic power tipping to a 960 mm tip height and a regenerative-braking system that returns energy to the battery to enhance range and efficiency. The compact, quiet, zero-emission machine is easily transportable and designed for productivity on confined sites.

Advantages

• Battery-powered driveline with hydraulic power tipping and fast tipping cycle.
• Mid tip height of 960 mm for safe, controlled dumping.
• Excellent manoeuvrability from articulated chassis and patented steering pivot drive.
• Zero emissions and low noise for use in noise-sensitive or indoor environments.
• Regenerative braking recovers energy to extend operating range.
• Compact, balanced design fits through standard doorways (894 mm / 3 ft).
• Easy to transport and store.
• Large 800 kg skip capacity with flotation tyres as standard (turf tyres optional).
• Fail-safe dead-man brake and full 4x4 drive for site safety and traction.

Technical specifications

• Model: EB800PTP (Battery, 4x4) 'Stand-On'
• Motor / Power: DC Motor 2 x 1400 W / 24 V
• Power Type: 4 x 6 V AGM batteries
• Max Payload (Sand): 800 kg / 1800 lbs / 15.5 ft3 / 0.43 m3
• Payload (Concrete): 720 kg / 1600 lbs / 12.5 ft3 / 0.35 m3
• Unladen Weight: 550 kg / 1212 lbs
• Working Width: 894 mm (3 ft)
• Tip Height: 960 mm
• Working Gradient: 10° continuous / 15° intermittent
• Drive & Controls: 2 x 24 V transaxle
• Brake System: Electrically operated with fail-safe dead-man handle
• Standard Tyres: Flotation (turf tyres optional)
• Forward / Reverse Travel: 4 kph (2.5 mph) / 2.5 kph (1.5 mph)
• Noise Level: <82 dB
