Wheeled mini dumper Concrete BUGGE

electric

Overview

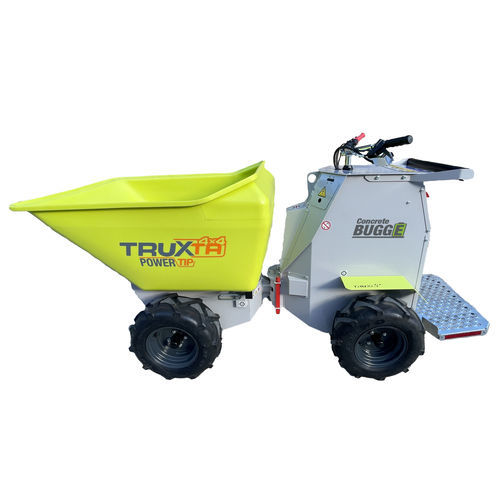

The TRUXTA Concrete BUGGE EB800PTCB is a battery-powered 4x4 stand-on electric concrete buggy designed for on-site concrete and material transport. It integrates a regenerative-braking system to recover energy into the battery pack, extending operating time and efficiency. The machine offers high payload capacity, precise manoeuvrability in confined areas and low-noise, zero-emission operation suitable for noise-sensitive or indoor environments.

Key features

• Up to 8 hours runtime
• On-board smart charger
• Dual mains voltage: 110 V / 230 V
• Approx. 3/4 ton (800 kg) payload
• Heavy-duty poly skip
• Flotation tyres fitted (optional turf tyres)
• Hydraulic power tip for controlled discharge
• Single-button control and simple control layout
• Handlebar power steering for precise control
• Galvanised fold-down step
• Built-in motor brake and fail-safe parking brake
• 4x4 drive system for traction on rough terrain
• Easy manoeuvring in tight spaces; stable for operator safety
• Regenerative-braking system
• Low noise operation (< 82 dB) and zero emissions
• Robust heavy-duty construction for various materials and terrains
• 24-month warranty on batteries

Technical specifications

• Model: Battery EB800PTCB (4x4) 'Stand-On' Concrete BUGGE
• Motor / Power: DC motor 2 x 1400 W / 24 V
• Power type: 4 x 6 V AGM batteries
• Max payload (sand): 800 kg / 1800 lbs / 15.5 ft3 / 0.43 m3
• Payload concrete unladen / weight: 720 kg / 1600 lbs / 12.5 ft3 / 0.35 m3 (alternate: 550 kg / 1212 lbs)
• Working width / Tip height: 885 mm / 180 mm
• Working gradient: 10° continuous / 15° intermittent
• Drive & controls: 4x4 drive / 2 x 24 V transaxle
• Brake system: Electrically operated brake system / Fail-safe dead-man handle
• Standard tyres: Flotation (turf tyres optional)
• Forward travel speed: 6.2 kph / 3.8 mph
• Reverse travel speed: 3.8 kph / 2.4 mph
• Noise level: < 82 dB
• Skip options: Poly
