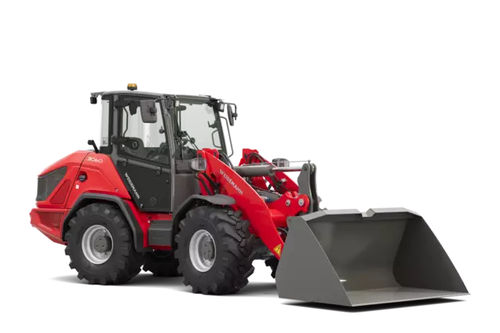

Rubber-tired loader 3060

compactwith cabarticulated

Overview
Next level: The wheel loader 3060 from Weidemann features comprehensive standard equipment and advanced technology. A strong price-performance ratio positions the machine as a versatile all-rounder. A wide range of options allows adaptation to specific jobsite requirements. The comfort cab offers excellent ergonomics and all-round visibility. Key 60-series design elements include easy access, ecDrive electronically controlled drive with selectable modes, electric parking brake, robust central joint with optimized hose routing and excellent maintenance access thanks to the transversely mounted engine and compact component layout.

Highlights

• Comfort cab: roomy 4-post design with panoramic visibility, wide entry, storage areas, heating and optional air conditioning, ergonomically arranged controls and reduced vibrations/noise.
• Transverse engine installation: engine mounted transversely with optimized component arrangement for excellent service access; single-handle hood access to dipstick, hydraulic tank, coolant and air filter.
• Front service access: optimized hydraulic hose routing and integrated control valve accessible via maintenance flap on the front carriage.
• Electric parking brake: automatic hold on pedal or when operator leaves the seat; manual override available; releases when accelerator is pressed.
• ecDrive traction drive: Auto and Eco modes standard; Attachment Mode and M-Drive optional; electronic control reduces losses and improves fuel efficiency and operating flexibility.
• Robust central joint with protected hoses: stable two-point connection and high-wear hose protection to minimize abrasion.

Additional features (Performance / Efficiency / Maintenance / Comfort / Safety / Variety)

• Articulated pendulum joint provides maximum traction and maneuverability on uneven terrain.
• 100% switchable differential lock for maximum traction when required; disengaged for normal travel to reduce tire wear.
• High hydraulic output for a wide range of attachments and flexible machine-attachment combinations.
• Z-kinematics optimized for energy-efficient loading, delivering high tear and breakaway forces for fast cycles.
• Optional 30 km/h top speed (with suitable engine) for faster site transfers.
• Stage V-compliant engine options with DPF + DOC aftertreatment; coordinated components for automatic regeneration; manual regeneration available.
• Hydraulic quick-change system and clearly visible quick-change plate for efficient attachment changes; safe two-hand release when uncoupling.
• Flat-face hydraulic couplings and front electrical connections for powered attachments.
• Pressureless return and leakage line for attachments with dedicated hydraulic motors to protect components and enable cooled return flow.
• Maintenance-friendly hydraulic layout with split connections for faster repairs; easy access to lubrication points; optional fully automatic central lubrication.
• Compact dimensions and high maneuverability for confined-site operation; multiple tire profiles available to suit ground conditions and applications.
• Operator comfort: adjustable steering column, ergonomic joystick, comfort seats (optional air-sprung and heated), vibration-damped cab, ventilation and optional A/C; load arm damping for transport comfort.
• Safety and visibility: non-slip steps, grab rails, deep-drawn windows, large roof opening and panoramic rear window; color-coded controls for intuitive grouping.
• Eco features: ecDrive Eco mode to reduce engine rpm, fuel consumption and noise; systems configured to meet current emission standards.

Downloads available on the product page

• Product brochure (multiple languages).
• PI Sheet metric 3060 (product information sheet).

Technical specifications

• Model name: 3060
• Series: 60-series
• Manufacturer / Brand: Weidemann
• Drive system: ecDrive (electronically controlled traction drive) with Auto and Eco modes; optional Attachment Mode, M-Drive
• Parking brake: Electric parking brake with automatic hold and manual override
• Engine installation: Transversely mounted engine; Stage V-compliant options with DPF + DOC
• Traction / chassis: Articulated pendulum joint, robust central joint, switchable 100% differential lock
• Kinematics: Z-kinematics for high tear and breakaway forces
• Hydraulics: High hydraulic performance; pressureless return with leakage line; flat-face couplings; rapid-change hydraulic system
• Maintenance: Transverse engine for easy access, single-handle hood, split hydraulic hoses, optional automatic central lubrication
• Operator environment: 4-post comfort cab, heating, optional A/C, ergonomic joystick, adjustable steering, vibration damping
• Optional equipment: Multiple tire profiles, front electrical connections, LED lighting options, air-sprung seats, 30 km/h top speed (with suitable engine)
