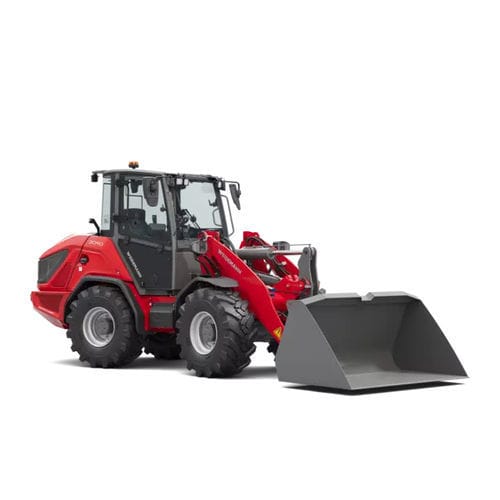

Rubber-tired loader 3090

compacttelescopicwith cab

Overview
The 3090 wheel loader is engineered for professional, high-throughput applications. It combines a high-performance engine, Load Sensing hydraulics and the electronically regulated ecDrive traction system with selectable driving modes to deliver efficient cycle times and flexible operation tailored to varied attachments and jobsite conditions.

Main highlights

• Best View Cabin with wide entry and suspension-mounted control console for improved ergonomics and visibility.
• Dynamic Loading Assistance (DLA) to standardise and speed up repetitive loading cycles.
• Flow Sharing standard for simultaneous multi-function hydraulic use.
• Load Sensing hydraulics for energy-efficient, high-flow performance.
• ecDrive traction with Auto, Eco, Attachment and M-Drive modes.
• Optional Power Drive for relocation speeds up to 30/40 km/h.
• Transverse engine installation for improved service access and rear visibility.

Dynamic Loading Assistance (DLA) details

• Integrates automatic bucket return, shake function, Tilt‑in‑Assist and lift height limitation (plus Tele Retract on telescopic variants) to accelerate cycles and stabilise results.
• Reduces operator strain and component wear while improving consistency and throughput.

Cab and operator comfort

• 4‑pillar Best View Cabin with panoramic glazing and a low-sloping hood for excellent sightlines.
• Operator First concept: integrated control console (display, Jog‑Dial, joystick) moves with the seat for ergonomics and reduced vibrations.
• Multiple seat options including mechanical and air-suspended seats; optional Premium seat with low-frequency suspension, heating, ventilation and lumbar support.
• Adjustable steering column, comprehensive climate concepts and optional air conditioning.

Performance & hydraulics

• Z-kinematics delivering high breakout and tear-out forces for fast loading.
• High hydraulic capacity with optional High Flow for demanding attachments.
• Adjustable 3rd control circuit and optional separate 4th circuit for complex tools.
• Thrust force control via Jog‑Dial to limit usable thrust and reduce wheel slip.
• Flow Sharing standard for simultaneous movements (e.g. lift + tilt).

Drive & traction

• Articulated pendulum joint maintains ground contact and traction on uneven terrain.
• 100% switchable differential lock for maximum traction when required.
• ecDrive modes optimise power distribution and fuel use; Eco mode reduces consumption.
• Inch brake pedal for progressive power split between drive and work hydraulics.

Safety & illumination

• Excellent all-round visibility plus object detection with ultrasonic sensors and optional rearview camera.
• Standard LED work lights and optional Performance Light Package with dimming and active work lighting.
• Electric parking brake for secure hold when parked.

Maintenance & build quality

• Transverse engine layout and optimized component arrangement for easy service access.
• Maintenance-friendly hydraulic hose routing and optional automatic central lubrication.
• Durable powder coating for corrosion protection and long service life.

Attachments, options & variety

• Supports wide range of attachments via rapid-change hydraulic couplings and electrical connections front/rear.
• Multiple tyre profiles available ex works for different ground conditions.
• Extensive optional equipment: lighting packages, hydraulic packages, additional control circuits, seats and comfort options.

Technical specifications

• Model name: 3090
• Driving speed: up to 30/40 km/h (Power Drive option)
• Assistance: Dynamic Loading Assistance (DLA) including automatic bucket return, shake function, Tilt‑in‑Assist, lift height limitation
• Hydraulics: Load Sensing (standard), Flow Sharing (standard), optional High Flow
• Traction: articulated pendulum joint, 100% switchable differential lock
• Traction drive: ecDrive with Auto, Eco, Attachment and M‑Drive modes
• Cab: Best View Cabin; integrated control console with 7‑inch display and Jog‑Dial
• Operator comfort: adjustable steering column, ergonomic joystick, optional Premium seat
• Serviceability: transverse engine installation, optimized access panels
• Safety: Object Detection (ultrasonic sensors), optional rearview camera, electric parking brake
• Lighting: LED work lights standard; optional Performance Light Package
• Optional equipment: 3rd and 4th control circuits, electrical connections, trailer hitch
