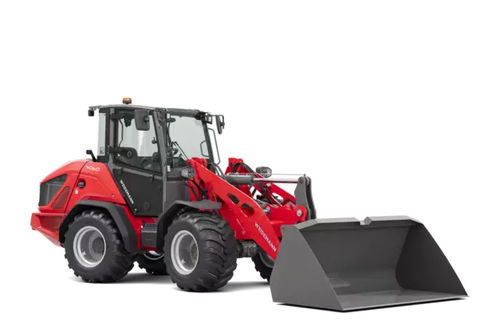

Rubber-tired loader 4060

with cabarticulated

Product overview
The 4060 articulated wheel loader combines versatile standard equipment, modular options and service‑friendly design for industrial and construction applications. Key design features include a comfort cab with 360° visibility, an electronically controlled ecDrive traction system with multiple modes, an electric parking brake and a transverse engine layout for easy maintenance access.

Highlights

• Long load arm increases lift height and reach for efficient loading without upsizing the machine.
• Comfort cab: optimized interior space, wide entrance, 4‑pillar design, panoramic glazing, heating and optional air conditioning; ergonomically arranged controls reduce operator fatigue.
• Transverse engine installation and single‑handle hood for fast access to maintenance points (oil dipstick, hydraulic tank, washer, coolant, air filter).
• Optimized hydraulic hose routing at the central joint and service flap access to the integrated control valve for simplified front carriage maintenance.
• Electric parking brake with hold function (automatic on brake pedal or when operator leaves seat) and manual release via accelerator or switch.
• ecDrive electronic traction drive with Auto and Eco modes as standard; Attachment Mode and M‑Drive Mode available for specific tasks.

Additional features

• Articulated pendulum centre joint maintains traction of all four wheels on uneven terrain and improves maneuverability.
• 100% switchable differential lock for maximum traction when needed; deactivated during normal operation to reduce tyre wear.
• Z‑kinematics tuned for high breakout and tear‑out forces and efficient loading cycles.
• High hydraulic flow suitable for a wide range of attachments; multiple tyre profiles available ex works to match ground conditions.
• Optional top speed up to 30 km/h with suitable motorization for faster site transit.

Attachment, hydraulic and electrical options

• Hydraulic quick‑change system and flat‑face couplings enable fast, clean attachment swaps; couplings can be connected under pressure with low leakage.
• Front electrical connections for electrically operated attachment functions; joystick can control additional attachment functions.
• Options for pressureless return and leakage oil line to protect attachment components and reduce casing pressure in hydraulic motors.

Maintenance and service

• Maintenance‑friendly hydraulic hosing with split/short connections for partial replacements and reduced downtime.
• Optional fully automatic central lubrication unit with configurable intervals to reduce manual maintenance tasks.
• Service flaps and covers provide easy access to cabin fuse, air filter and battery for quick checks and servicing.

Operating comfort & ergonomics

• Consistent operation concept: ergonomically placed switches, jog‑dial, joystick and display for intuitive control and short acclimation between machines.
• Adjustable steering column and ergonomic joystick for one‑hand operation of many functions; optional air‑suspended and heated seats, seat vibration damping and climate options.
• Inch‑brake, manual throttle and proportional speed limiter support precise attachment work and controlled power distribution.

Eco & emissions

• Available motorization compliant with Stage V (DPF + DOC) without requiring urea (DEF) in standard configuration; coordinated after‑treatment ensures correct regeneration.
• ecDrive Eco Mode lowers engine speed once set vehicle speed is reached to reduce fuel consumption and noise.

Technical specifications

• Model: 4060
• Machine type: Articulated wheel loader
• Cabin: Comfort cab, 4‑pillar design, panoramic visibility, heating, optional A/C
• Drive: ecDrive electronically controlled traction drive (Auto, Eco; optional Attachment, M‑Drive)
• Parking brake: Electric with hold and manual switch
• Engine layout: Transverse for improved service access
• Emissions: Stage V compliant (DPF + DOC), standard configuration without DEF
• Hydraulics: High flow, flat‑face couplings, options for pressureless return and leakage line
• Attachment system: Hydraulic quick‑change; optional front electrical connections
• Kinematics/chassis: Robust central joint, articulated pendulum joint, Z‑kinematics
• Traction: 100% switchable differential lock
• Tires: Multiple ex‑works profiles (EM, AS, SureTrax, RP, MPT, Multiuse, Bibload)
• Optional top speed: up to 30 km/h with appropriate motorization
• Service features: Single‑handle hood, optional automatic central lubrication, split hydraulic hose connections
• Safety/lighting: Good all‑round visibility; standard StVZO lighting and basic LED roof lights; LED and beacon options
