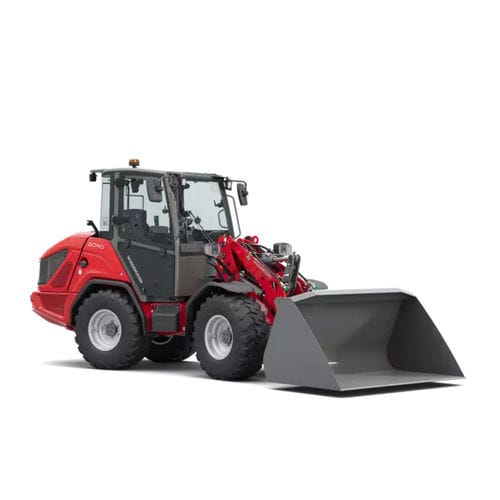

Rubber-tired loader 2090

compactwith cabarticulated

Overview
Next Level Professional: The 2090 wheel loader was designed for professional use in demanding conditions and impresses with its maximum efficiency, high material handling capacity, and state-of-the-art assistance systems. Thanks to a wide range of options, the machine can be optimally adapted to individual requirements. The high-performance engine, powerful working hydraulics, and the electronically controlled ecDrive drive system with various driving modes ensure maximum productivity and dynamic driving characteristics. The 90 Series for professional use offers Best View Cabin, extensive lighting options, Dynamic Loading Assistance (DLA), Flow Sharing (standard), Object Detection, Power Drive (driving speeds up to 40 km/h), electric parking brake and very good service accessibility due to the transversely mounted engine and optimized component arrangement.

Key features

• DLA (Dynamic Loading Assistance): integrated assistance package combining automatic bucket return, shake function, Tilt-in-Assist, and lift height limitation to accelerate loading cycles, optimize bucket volume use, reduce wear and simplify operation.
• Power Drive: continuously variable hydrostatic traction drive achieving higher tractive forces and driving speeds without gear shifts; enables driving speeds up to 40 km/h (optionally 30/40 km/h).
• ecDrive electronically regulated traction drive: Auto Mode (full performance), Eco Mode (reduced engine speed for fuel/noise savings), Attachment Mode (optimises engine/attachment interaction), M-Drive (gas-pedal style mode).
• Flow Sharing: standard equipment allowing simultaneous hydraulic functions under constant pressure for sensitive, parallel work movements.
• Best View Cabin: wide entry, 4-pillar design, deep-set windows, panoramic rear window and a panoramic roof cut-out for excellent all-round visibility; spring-loaded control console and Operator First philosophy with ergonomically arranged controls.
• Operator First operating philosophy: integrated control console (display, Jog-Dial, joystick) mounted with the operator seat for ergonomic operation; optional Premium seat.
• High hydraulic performance: sufficient hydraulic output for many attachments; flexible combination of machine and hydraulically operated attachments.
• Robust articulated pendulum joint and 100% connectible differential lock: maximum traction and thrust with front/rear carriage swing and traction control on uneven terrain.
• Comprehensive lighting concepts and Performance Light Package: powerful LED work lights, dimming and active work lighting for optimal illumination and glare-free operation.
• Compact dimensions and maneuverability: designed for confined spaces while keeping directional stability.
• Serviceability: transversely mounted engine and optimized component layout for easy access and maintenance.

Assistance & operation aids

• Tipping angle display on screen for precise guidance of attachments.
• Thrust force control adjustable via Jog-Dial to limit usable thrust force and reduce wheel slip.
• Tilt-in-Assist, shake function and automatic bucket retraction to speed up and standardise loading cycles.
• Adjustable 3rd control circuit and optional separate 4th control circuit for extended attachment functionality.
• Jog-Dial control element and clear 7-inch display to manage functions and loader assistants.

Comfort & cab

• Ergonomic joystick and control console integrated with operator seat; height/incline adjustable steering wheel.
• Cab versions with heating/ventilation and optional air-conditioning; multiple ventilation/door options including split door for gap ventilation.
• Operator seat options: mechanical suspension standard; optional air-suspended and Premium seats with low-frequency suspension, heating, ventilation and lumbar support.
• Vibration-damped workstation and end-position damping for lift cylinders to increase operator comfort and reduce wear.

Maintenance & durability

• High-quality powder coating for corrosion protection and value retention.
• Maintenance-friendly hydraulic hosing with split short hydro connections to reduce repair times.
• Service access: right-hand service flap, easily accessible battery, filters and maintenance points; optionally fully automatic central lubrication unit.

Variety & attachments

• Wide range of attachments and electrical/hydraulic connection options (front/rear electrical connections, pressureless return including leakage oil line, flat-face couplings, Easy Coupler System for in-cab hydraulic attachment changes).
• Optimum tire choices with various profiles (EM, AS, SureTrax, RP, MPT, Multiuse, Bibload) to match ground/application.

Additional safety & functionality

• Object Detection: ultrasonic sensors and optional rearview camera to warn of obstacles visually and acoustically.
• Electric parking brake with hold function for safety; proportional speed limiter and manual throttle for attachment operation at consistent engine speeds.

Technical specifications

• Model series: 90 Series (professional use).
• Model name / designation: 2090.
• Driving speed: up to 40 km/h (Power Drive; optional 30/40 km/h configuration).
• Display: clear 7-inch operator display (integrated into control console).
• Assistance functions included: DLA (automatic bucket return, shake function, Tilt-in-Assist, lift height limitation), Flow Sharing.
• Traction drive: ecDrive electronically regulated traction drive with Auto, Eco, Attachment and M-Drive modes; Power Drive hydrostatic CVT for higher tractive force.
• Cab: Best View Cabin with 4-pillar design, panoramic visibility, sprung control console and ergonomic controls.
• Hydraulics: high hydraulic output; adjustable 3rd control circuit; optional 4th control circuit; pressureless return / leakage oil line support for certain attachments.
• Attachment coupling: flat-face hydraulic couplings; optional Easy Coupler System for in-cab hydraulic coupling.
• Lift/kinematics: P‑Z kinematics for high lifting/tearing forces with parallel guidance.
• Traction/drive features: articulated pendulum joint, 100% connectible differential lock, thrust force control.
• Maintenance features: transversely mounted engine, optimized component layout, service access panels, optional central automatic lubrication.
