Rubber-tired loader 2060

compactwith cabarticulated

Overview

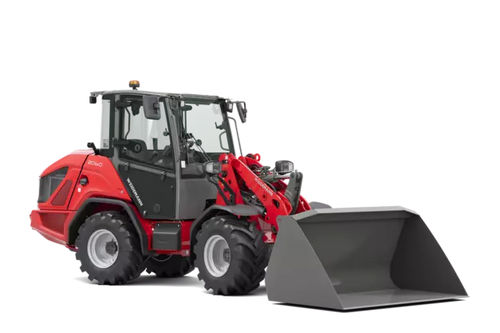

The Weidemann 2060 is a compact articulated wheel loader designed for versatile material handling in confined and varied-site conditions. Standard delivery includes an operator’s canopy; a comfortable cabin with panoramic visibility is available as an option. The machine combines a transversely mounted engine, easy service access and an electronically controlled traction drive (ecDrive) allowing multiple operating modes to optimise fuel consumption and performance.

Highlights

• Comfortable cab option with 4‑pillar design and panoramic glazing for 360° visibility; ergonomic controls and optional air‑conditioning.
• Service‑friendly front end with optimised hydraulic hose routing and accessible control valve via maintenance flap.
• Transverse engine installation for improved cooling, rear visibility and low centre of gravity.
• Electric parking brake with hold function and automatic/manual release.
• ecDrive traction system with Auto and Eco modes standard; Attachment Mode and M‑Drive optional for task‑optimised control.
• Optional air‑conditioning and lighting packages (LED work lights, rotating beacons).

Additional Features (selected)

• Attachment Mode (ecDrive): adapts travel speed to load and attachment demands for higher productivity.
• M‑Drive Mode (ecDrive): manual‑throttle gas‑pedal mode for comfortable attachment operation without inching.
• Articulated pendulum joint: maintains traction on uneven ground and delivers a favourable articulation/swing ratio.
• 100% connectible differential lock for maximum traction when required.
• High hydraulic performance with flat‑face couplings, rapid‑change system and optional Easy Coupler System (ecs).
• P‑Z kinematics for high lift/tear forces combined with parallel guidance for handling pallets and materials.
• Wide tyre options (EM, AS, SureTrax, RP, MPT, Multiuse, Bibload) to match ground conditions and application.
• Optional up to 30 km/h top speed with suitable motorisation.

Maintenance, safety and service features

• Robust central joint with optimised hose routing to reduce wear and protect hydraulic lines.
• Fully automatic central lubrication with adjustable intervals and easy‑access service points.
• Transverse engine and right‑side service flap for ergonomic access to filters, battery and routine maintenance points.
• ROPS/FOPS operator’s canopy as standard; selectable low/high canopy or comfortable cabin.
• Multiple‑disc brake design for dependable braking and reduced maintenance.

Operating comfort and ergonomics

• Ergonomic joystick and colour‑coded control groups for intuitive operation of travel, hydraulics and electrics.
• Adjustable steering column and comfort seats (optional air‑suspended, heated); vibration damping and optimised ventilation.
• Good ingress/egress, storage options and operator‑oriented layout for long shifts.

Technical specifications

• Model: 2060 (60‑series)
• Manufacturer: Weidemann
• Operator platform: overhead guard (standard); low/high canopy or comfort cabin optional
• Drive: ecDrive electronically controlled traction drive (Auto/Eco standard; Attachment/M‑Drive optional)
• Parking brake: Electric parking brake with hold function
• Engine: transversely mounted, compliant with current emission standards; DPF + DOC exhaust after‑treatment (no DEF required)
• Drivetrain: articulated pendulum joint, 100% connectible differential lock
• Hydraulics: high output, pressureless return and leakage line available; flat‑face couplings; rapid‑change system; optional ecs
• Kinematics: P‑Z kinematics for high lifting/tearing forces with parallel guidance
• Optional top speed: up to 30 km/h (with suitable motorisation)
• Maintenance: central automatic lubrication, service flaps, split hydraulic hoses for reduced repair scope
• Safety & visibility: ROPS/FOPS overhead guard, 360° visibility, optional LED lighting packages
