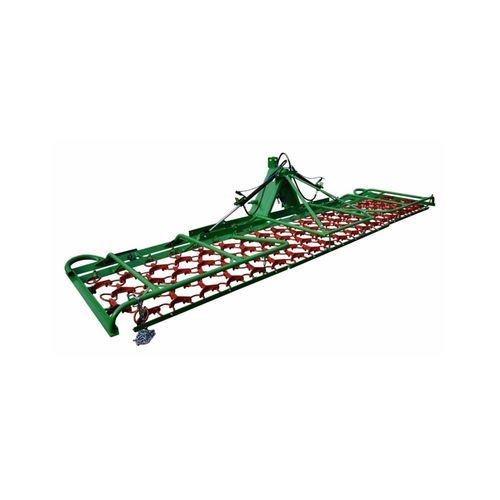

Chain harrow 1146

towed

Standard equipment

• 3-point linkage cat. II, box type
• 4 rows of heavy cast
• For 4m harrow: mechanical or hydraulic unfolding (2 double acting cylinders)
• For 5m and 6m harrow: hydraulic unfolding (2 double acting cylinders)
• Mechanical transport safety lock
• Connecting the harrow working field to the main frame by shackles and hooks
• Skids for harrows width 5-6m

Optional equipment

• Sharp cast
• Skids for 4m harrow
• Galvanized frame

Product number

• 1146; 1148; 1156; 1160

Technical Specifications
Ref. No. | Working width [m] | Folding | Weight [kg]
1146 | 4.0 m | Mechanical | 370 kg
1148 | 4.0 m | Hydraulic | 400 kg
1156 | 5.0 m | Hydraulic | 500 kg
1160 | 6.0 m | Hydraulic | 580 kg

Characteristics / Technical Specifications

• 3-point linkage cat. II, box type
• 4 rows of heavy cast
• Mechanical or hydraulic unfolding (2 double acting cylinders) depending on model
• Mechanical transport safety lock
• Shackles and hooks for connecting working field to main frame
• Skids for harrows (5-6m standard, 4m optional)
• Optional sharp cast and galvanized frame
• Available working widths: 4.0 m, 5.0 m, 6.0 m
• Weight range: 370 kg to 580 kg
