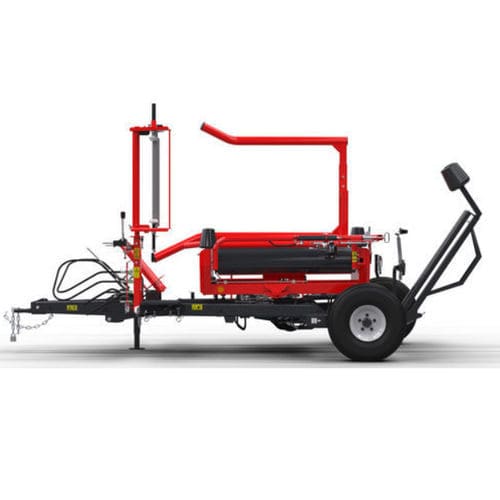

Individual bale wrapper 1504

roundtowedautomatic

Standard equipment

• Drawbar for upper or lower hitch
• Hydraulic side loading arm with spacing adjustment
• 4 rotating rollers with embossing preventing the bale from slipping
• Protective side cones
• Universal foil dispenser for foil width 500/750mm with automatic film cutting device
• Automatic activation of wrapping process (except the first bale)
• Automatic table blockade during loading and unloading and putting it in central position during unloading
• Hydraulic table raising
• Electronic counter of: number of bale wraps, working time, number of bales, average number
• Hydraulic drive from the tractor pump
• Steering of the hydraulics from the tractor cabin with Bowden cables
• Wheels 10,0/80-12,10 pr
• Possibility of changing wheels spacing for work and transport position
• Front platform
• Supporting leg
• Wrapping time (2 layers of 500mm foil 2 minutes or 750mm 1,3 minutes)

Optional equipment

• Damper for setting bales in vertical position
• Hydraulic foil cutter

Product number

• 1504

Technical Specifications
Ref.No. | Bale diameter [m] | Bale max. width [m] | Power demand [HP] | Length/width/height [m] | Weight [kg]
1504 | 1,0-1,2 | 1,2 | 40 | 4,35/2,45 /2,38 | 950
1504H | 1,0-1,2 | 1,2 | 40 | 4,35/2,45 /2,38 | 950

Characteristics / Technical Specifications

• Ref.No.: 1504, 1504H
• Bale diameter: 1.0-1.2 m
• Bale max. width: 1.2 m
• Power demand: 40 HP
• Dimensions (L/W/H): 4.35/2.45/2.38 m
• Weight: 950 kg
