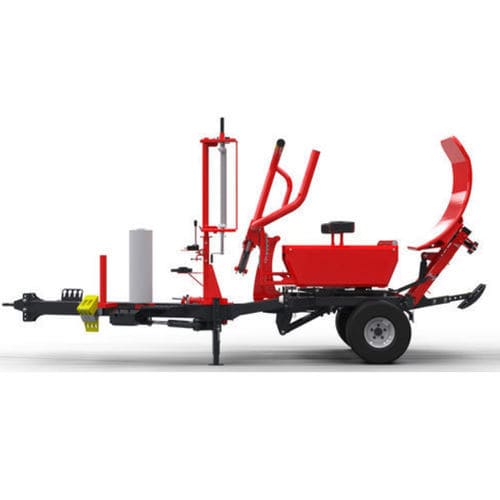

Individual bale wrapper 1506

roundautomatic

Standard equipment

• Drawbar for lower hitch in the work – transport position
• Hydraulic front loading arm
• 4 rotating rollers with embossing preventing the bale from slipping
• Side wheels
• Universal foil dispenser for the foil width 500/750mm with automatic film cutter
• Automatic activation of wrapping process (except the first bale)
• Automatic table blockade during loading and unloading and putting it in central position during unloading
• Hydraulic raising of the table
• Hydraulic damper for setting bales in vertical position with adjustable support leg
• Electronic counter of: number of bale wraps, working time, number of bales, average number of bales per hour
• Hydraulic drive from the tractor pump
• Steering of the hydraulics from the tractor cabin with Bowden cables
• Wheels 26,5/14,00 – 12 10 pr
• Front platform- front loading arm
• Wrapping time (2 layers of 500mm foil 2 minutes or 750mm 1,3 minutes)

Optional equipment

• Drawbar for upper hitch of the tractor
• Electronic control, hydraulic foil cutting – version No. 1507

Technical Specifications
Ref.No. | Bale diameter [m] | Bale max. width [m] | Power demand [HP] | Length/width/height [m] | Weight [kg]
1506 | 1.2 | 1.2 | 40 | 5.22 / 2.2 / 2.5 | 1250
1507 | 1.2 | 1.2 | 40 | 5.22 / 2.2 / 2.5 | 1250

Product number
1506;1507

Characteristics / Technical Specifications

• Product type: Self loading wrapper with front loading
• Category: Bale wrapers, Grassland
• Standard and optional equipment as listed above
• Ref.No.: 1506, 1507
• Bale diameter: 1.2 m
• Bale max. width: 1.2 m
• Power demand: 40 HP
• Dimensions (L/W/H): 5.22 / 2.2 / 2.5 m
• Weight: 1250 kg
