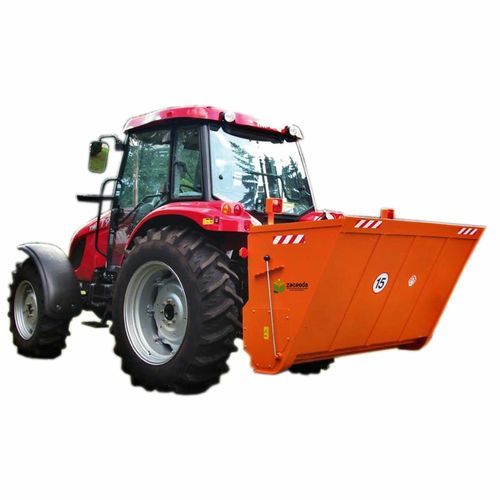

3-point hitch sand spreader 5224

mounted

Standard equipment

• 3-point linkage cat. II
• Crumbling shaft
• Metering shaft
• Hydraulic drive
• Chain transmission, transmitting the drive from a hydraulic motor
• Mechanical adjustment of the amount of sand dump – lever
• Fixed discharge width
• Hydraulic loading of the load box (double-acting hydraulic cylinder)
• 2-sections hydraulic connection (4 wires)
• Road lights

Product number

• 5224; 5225

Technical Specifications
Ref.No. | Working width [m] | Transport width [m] | Capacity [m3] | Weight [kg]
5224 | 1.33 | 1.7 | 0.75 | 470
5225 | 1.83 | 2.2 | 1.00 | 550

Characteristics / Technical Specifications

• Standard equipment: 3-point linkage cat. II, crumbling shaft, metering shaft, hydraulic drive, chain transmission, mechanical adjustment of sand dump, fixed discharge width, hydraulic loading of the load box, 2-sections hydraulic connection, road lights
• Product numbers: 5224, 5225
• Working width: 1.33 m (5224), 1.83 m (5225)
• Transport width: 1.7 m (5224), 2.2 m (5225)
• Capacity: 0.75 m³ (5224), 1.00 m³ (5225)
• Weight: 470 kg (5224), 550 kg (5225)
