Stationary mixer 2429AJ
truck-mountedside dischargerear discharge

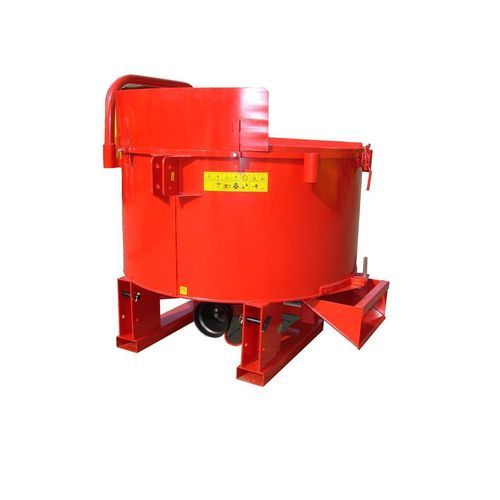

Stationary mixer - 2429AJ - ZAGRODA INTERNATIONAL Sp. z o.o. - truck-mounted / side discharge / rear discharge
Stationary mixer - 2429AJ - ZAGRODA INTERNATIONAL Sp. z o.o. - truck-mounted / side discharge / rear discharge
Stationary mixer - 2429AJ - ZAGRODA INTERNATIONAL Sp. z o.o. - truck-mounted / side discharge / rear discharge - image - 2
Stationary mixer - 2429AJ - ZAGRODA INTERNATIONAL Sp. z o.o. - truck-mounted / side discharge / rear discharge - image - 3
Stationary mixer - 2429AJ - ZAGRODA INTERNATIONAL Sp. z o.o. - truck-mounted / side discharge / rear discharge - image - 4
Stationary mixer - 2429AJ - ZAGRODA INTERNATIONAL Sp. z o.o. - truck-mounted / side discharge / rear discharge - image - 5
Stationary mixer - 2429AJ - ZAGRODA INTERNATIONAL Sp. z o.o. - truck-mounted / side discharge / rear discharge - image - 6
Stationary mixer - 2429AJ - ZAGRODA INTERNATIONAL Sp. z o.o. - truck-mounted / side discharge / rear discharge - image - 7
Stationary mixer - 2429AJ - ZAGRODA INTERNATIONAL Sp. z o.o. - truck-mounted / side discharge / rear discharge - image - 8
Add to favorites
Compare this product
Go to the ZAGRODA INTERNATIONAL Sp. z o.o. website for more information

Characteristics

Mobility
stationary, truck-mounted
Discharge type
side discharge, rear discharge
Other characteristic
PTO-driven, self-loading
Capacity in kg

Max.: 3,000 kg
(6,613.87 lb)

Min.: 450 kg
(992.08 lb)

Description

Product Details
  • Standard equipment:
    • Three-point linkage cat II
    • Fixture for pallet forks
    • Sheet thickness: side – 5mm, bottom – 6mm
    • Height adjustable reinforced mixing arms
    • Protective grille (2-piece in the 1200I version)
    • Rear and side discharge
    • Metal guard on tractor side
    • Gearbox drive
  • Drive via cardan shaft:
    • 400 rpm MIN. 540 rpm MAX.
    • The cardan shaft is not part of the standard equipment.
    • When connecting the mixer to the tractor, use only a PTO shaft with an overload clutch.
  • Hydraulic drive:
    • Recommended oil flow: 45-80 l/min, should not exceed 120 l/min.
  • Optional equipment:
    • Hydraulic motor drive
    • Hydraulic discharge opening (1 pcs.)
    • Self-loading shovel
    • Cardan shaft
  • Product number: 2429AJ; 2430AJ; 2431AJ; 2432AJ

Technical Specifications
Code | Max. Payload [l/kg] | Total tank volume [l] | Ø [mm] | Weight [kg] | Power requirement [KM]
2429AJ | 450 / 1100 | 600 | 950 | 350 | 22
2430AJ | 600 / 1400 | 800 | 1250 | 480 | 50
2431AJ | 900 / 2100 | 1200 | 1500 | 570 | 65
2432AJ | 1350 / 3000 | 1800 | 1800 | 760 | 80

Characteristics / Technical Specifications
  • Three-point linkage cat II
  • Fixture for pallet forks
  • Sheet thickness: side – 5mm, bottom – 6mm
  • Height adjustable reinforced mixing arms
  • Protective grille (2-piece in the 1200I version)
  • Rear and side discharge
  • Metal guard on tractor side
  • Gearbox drive
  • Drive via cardan shaft: 400 rpm MIN. 540 rpm MAX.
  • Hydraulic drive: Recommended oil flow 45-80 l/min, max 120 l/min
  • Optional: Hydraulic motor drive, Hydraulic discharge opening, Self-loading shovel, Cardan shaft
