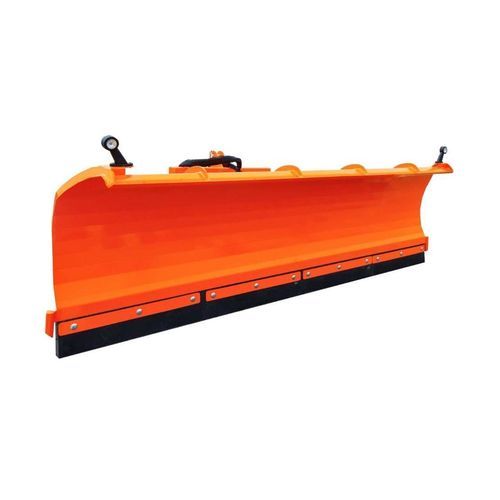

Straight snow plow 5114

Product Overview
The Universal straight snow plow is a robust and versatile municipal machine designed for efficient snow removal. It is available in multiple working widths and is equipped with both standard and optional features to suit various operational needs.

Standard equipment

• 3-point linkage cat. II
• Mouldboard height: 90.0/83.0 cm
• Mouldboard turning angle (right and left) up to 30°
• Mouldboard hydraulic control – two cylinders
• Side ground copying system at the hitch frame in the range of: lateral tilt +/- 5⁰
• Blade spring protection
• 50 mm rubber strip, holes with a pitch of 305 mm
• Required number of hydraulic connections: 2 (1 pair)
• LED lights

Optional equipment

• Skids
• 160/50 or 200/50 support wheels
• Blade made of 150 x 16 mm wear-resistant steel
• 150 x 25 mm polyurethane blade
• Hydraulic overload protection
• 3-point linkage cat. II and III or EURO mount and 3-point linkage cat. II
• Other type of mount for telehandlers or mini loader

Product numbers

• 5114
• 5115
• 5116
• 5117

Technical Specifications
Ref.No. | Working width [m] | Length/width/height [m] | Weight [kg]
5114 | 2.2 | 1.2 / 2.2 / 0.9 | 360
5115 | 2.5 | 1.2 / 2.5 / 0.9 | 380
5116 | 2.7 | 1.2 / 2.7 / 0.9 | 400
5117 | 3.0 | 1.2 / 3.0 / 0.9 | 440

Key Features / Technical Specifications

• Available working widths: 2.2 m, 2.5 m, 2.7 m, 3.0 m
• Mouldboard height: 90.0/83.0 cm
• Mouldboard turning angle: up to 30° (right and left)
• Hydraulic control with two cylinders
• Lateral tilt: +/- 5⁰
• Blade spring protection
• LED lighting
• Multiple mounting options (3-point linkage, EURO mount, telehandler/mini loader)
• Weight range: 360–440 kg depending on model
