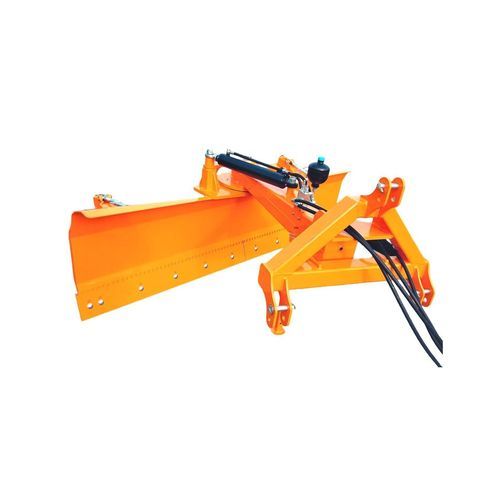

Hydraulic grader blade 2555BN

Product Overview
The Heavy duty dozer blade is a robust municipal machine designed for demanding earthmoving and leveling tasks. It features a high blade, durable construction, and advanced hydraulic controls for versatile operation.

Standard equipment

• 3-point linkage cat. III
• 720mm blade height, raised to 850mm on one side
• 200×12 mm (500 hb) steel hardox scraper, distance between screws 305mm
• Hydraulic controlled heavy scraper: cylinder rotating the blade for front or rear operation in the range of 230° and the cylinder controlling the drawbar tilt in the range of +/- 30°
• Two support wheels 6,00×9, with mechanical (smooth) adjustment of the scraper working height
• Supporting leg
• Blade overload protection (hydraulic accumulator on the cylinder changing the blade angle)

Optional equipment

• Other type of mount

Product numbers

• 2555BN
• 2556BN
• 2557BN

Technical Specifications
Ref.No. | Working width [m] | Weight [kg]
2555BN | 2.4 | 600
2556BN | 2.7 | 630
2557BN | 3.0 | 665

Key Features / Technical Specifications

• 3-point linkage cat. III
• Blade height: 720mm (up to 850mm on one side)
• Steel hardox scraper: 200×12 mm (500 hb), 305mm screw distance
• Hydraulic blade rotation: 230° range
• Drawbar tilt: +/- 30°
• Support wheels: 6,00×9, mechanical height adjustment
• Supporting leg included
• Blade overload protection via hydraulic accumulator
• Available working widths: 2.4m, 2.7m, 3.0m
• Weights: 600kg, 630kg, 665kg
