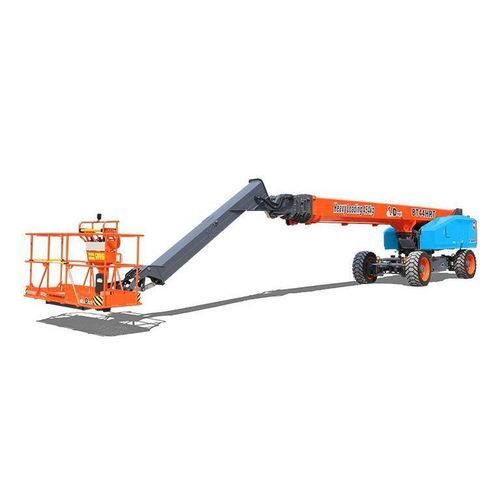

Self-propelled aerial platform BT44HRT

electric4 wheel drive

Product overview

• Developed by TEUPEN, DINGLI’s German R&D center;
• Modular design horizontally & vertically, 85% common components across the full range; electric / diesel / hybrid models developed on the same platform;
• Patented one-key in-situ axle expansion with four-wheel drive & steering; axle expansion & retraction in confined spaces;
• Up to 40% increase in operational efficiency compared with equivalent machines in the sector;
• Cat3 safety architecture with full redundancy of electronic control software & hardware;
• Jib with 230° swing, hook-backable for standard container transport;
• Equipped with 360V 150–180Ah modular high-voltage battery and a universal range extender to charge the battery when external power is unavailable.

Dimensions
Max. Working Height: 44.44m / 146ft
Max. Platform Height: 42.44m / 139ft 3in
Max. Operating Range(+0.6m): 25.60m / 83ft 12in
Max. Platform Range: 25.00m / 82ft
Max. Up And Over Clearance: /
Max. Down Probing Depth: /
Overall Length (Stowed): 17.00m / 55ft 9in
Overall Width (Axle Expanded): 4.17m / 13ft 8in
Overall Width (Axle Retracted): 2.44m / 8ft
Overall Height (Stowed): 2.83m / 9ft 3in
Transport Size (Length×Width×Height): 11.92m×2.44m×2.83m / 39ft 2in×8ft×9ft 3in
Platform Size (Length×Width): 2.44m×0.91m / 8ft×2ft 11in
Platform Height: /
Turntable Tailswing (Axle Expanded): 1.39m / 4ft 7in
Turntable Tailswing (Axle Retracted): 2.28m / 7ft 6in
Ground Clearance (Stowed/Raised): 0.40m / 1ft 4in
Wheelbase (Axle Expanded): 4.07m / 13ft 4in
Wheelbase (Axle Retracted): 4.27m / 14ft
Tyres: 445/50/D710

Performance
S.W.L (Unrestricted/Restricted): 300kg/454kg / 661lb/1000lb
Max. Occupants: 3
Gradeability: 0.45
Travel Speed (Stowed): ≯ 6.0km/h / ≯ 3.73mph
Travel Speed (Raised): ≯ 1.1km/h / ≯ 0.68mph
Max. Working Slope (X/Y): 5°/5°
Turret Rotation: 360° Continuous
Platform Rotation: 180°
Jib Movement: 230°
Main Boom Maximum Angle: 75°
Turning Radius - Axle Expanded (Inside/Outside): 2.99m/5.41m / 9ft 10in/17ft 9in
Turning Radius - Axle Retracted (Inside/Outside): 8.27m/10.85m / 27ft 1in/35ft 7in

Weight
Overall Weight: 23000kg / 50706lb

Power
Diesel Engine: /
Range Extended Engine: Kubota D1105 / 18.2kW
Diesel Tank: 100L / 26gal
Hydraulic Tank: 230L / 60gal
Emergency Power System: 12V
Lithium Battery: 358.4V / 173Ah
Charger: 358.4V / 32A
Pump Motor: 360VDC / 30kW

Technical specifications

• Model: BT44HRT
• Series: T Series
• Max. Working Height: 44.44m / 146ft
• Max. Platform Height: 42.44m / 139ft 3in
• Maximum Outreach: 25.60m (operating range +0.6m) / 83ft 12in
• Platform Capacity (S.W.L): 300kg (unrestricted) / 454kg (restricted)
• Maximum Occupants: 3
• Overall Weight: 23000kg
• Axle expansion / retraction feature: patented one-key in-situ axle expansion with four-wheel drive & steering
• Jib movement: 230° (hook-backable for container transport)
• Battery: 358.4V / 173Ah lithium; optional modular 360V 150-180Ah batteries with universal range extender
• Range extender engine: Kubota D1105 (18.2kW)
• Travel speed (stowed): up to 6.0 km/h
• Turret rotation: continuous 360°
