Self-propelled aerial platform BT44RT
electric4 wheel drive

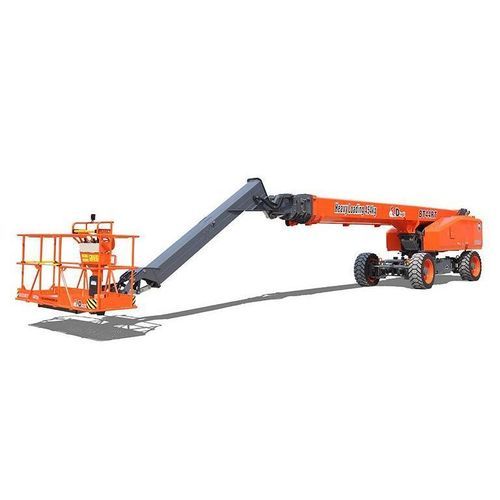

Self-propelled aerial platform - BT44RT - Zhejiang Dingli Machinery Co,Ltd - electric / 4 wheel drive
Self-propelled aerial platform - BT44RT - Zhejiang Dingli Machinery Co,Ltd - electric / 4 wheel drive
Add to favorites
Compare this product

Characteristics

Type
self-propelled
Other characteristics
4 wheel drive, electric
Height

42.4 m, 44.4 m
(139'01" , 145'08" )

Description

Product overview
  • Self-propelled articulated boom lift designed for heavy-duty access at heights up to 44.44 m.
  • Modular platform architecture with horizontal and vertical modularity; 85% component commonality across the series; electric, diesel and hybrid configurations on the same platform.
  • Patented one-key in-situ axle expansion with four-wheel drive and four-wheel steering for tight-space maneuvering.
  • 230° jib, 360° turret rotation and 180° platform rotation for flexible positioning; compatible with standard container transport when hooked back.
  • Equipped with a 55.4 kW Deutz diesel engine and designed for a gradeability up to 45%.


Product parameters
Dimensions
  • Max. Working Height: 44.44 m / 146 ft
  • Max. Platform Height: 42.44 m / 139 ft 3 in
  • Max. Operating Range (+0.6 m): 25.60 m / 83 ft 12 in
  • Max. Platform Range: 25.00 m / 82 ft
  • Overall Length (Stowed): 17.00 m / 55 ft 9 in
  • Overall Width (Axle Expanded): 4.17 m / 13 ft 8 in
  • Overall Width (Axle Retracted): 2.44 m / 8 ft
  • Overall Height (Stowed): 2.83 m / 9 ft 3 in
  • Transport Size (L×W×H): 11.92 m × 2.44 m × 2.83 m
  • Platform Size (L×W): 2.44 m × 0.91 m
  • Turntable Tailswing (Expanded/Retracted): 1.39 m / 2.28 m
  • Ground Clearance (Stowed/Raised): 0.40 m
  • Wheelbase (Expanded/Retracted): 4.07 m / 4.27 m
  • Tyres: 445/50/D710


Performance
  • S.W.L. (Unrestricted / Restricted): 300 kg / 454 kg (661 lb / 1000 lb)
  • Max. Occupants: 3
  • Gradeability: 45% (0.45)
  • Travel Speed (Stowed / Raised): ≥ 6.0 km/h / ≥ 1.1 km/h
  • Max. Working Slope (X/Y): 5° / 5°
  • Turret Rotation: 360° continuous
  • Platform Rotation: 180°
  • Jib Movement: 230°
  • Main Boom Maximum Angle: 75°
  • Turning Radius (Axle Expanded) (Inside / Outside): 2.99 m / 5.41 m
  • Turning Radius (Axle Retracted) (Inside / Outside): 8.27 m / 10.85 m


Weight
  • Overall Weight: 22,500 kg / 49,604 lb


Power
  • Diesel Engine: Deutz TD2.9 L4 — 55.4 kW
  • Diesel Tank Capacity: 150 L
  • Hydraulic Tank Capacity: 230 L
  • Emergency Power System: 12 V


Technical specifications
  • Model: BT44RT
  • Series: T Series
  • Max. Working Height: 44.44 m
  • Max. Platform Height: 42.44 m
  • Max. Operating Range (+0.6 m): 25.60 m
  • Max. Platform Range: 25.00 m
  • Overall Length (Stowed): 17.00 m
  • Overall Width (Axle Expanded/ Retracted): 4.17 m / 2.44 m
  • Overall Height (Stowed): 2.83 m
  • Transport Size: 11.92 m × 2.44 m × 2.83 m
  • Platform Size: 2.44 m × 0.91 m
  • Turntable Tailswing: 1.39 m / 2.28 m
  • Ground Clearance: 0.40 m
  • Wheelbase: 4.07 m / 4.27 m
  • Tyres: 445/50/D710
  • S.W.L.: 300 kg / 454 kg
  • Max. Occupants: 3
  • Gradeability: 45%
  • Travel Speed: ≥ 6.0 km/h / ≥ 1.1 km/h
  • Turret Rotation: 360° continuous
  • Platform Rotation: 180°
  • Jib Movement: 230°
  • Main Boom Max Angle: 75°
  • Overall Weight: 22,500 kg
  • Diesel Engine: Deutz TD2.9 L4 — 55.4 kW
  • Diesel Tank: 150 L
  • Hydraulic Tank: 230 L
  • Emergency Power: 12 V
