Self-propelled aerial platform BT41ERT
electric4 wheel drive

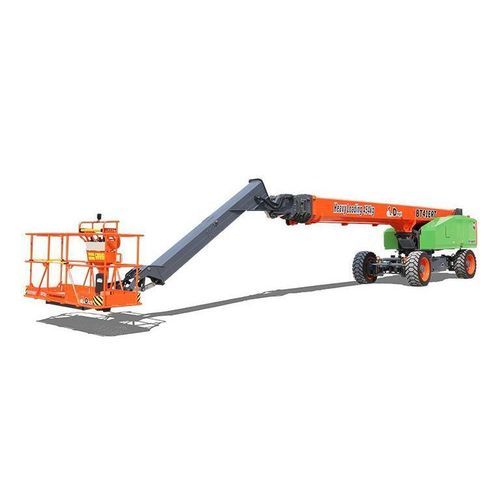

Self-propelled aerial platform - BT41ERT - Zhejiang Dingli Machinery Co,Ltd - electric / 4 wheel drive
Self-propelled aerial platform - BT41ERT - Zhejiang Dingli Machinery Co,Ltd - electric / 4 wheel drive
Add to favorites
Compare this product

Characteristics

Type
self-propelled
Other characteristics
4 wheel drive, electric
Height

39.5 m, 41.5 m
(129'07" , 136'01" )

Description

T Series - BT41ERT Overview
  • Developed by TEUPEN, DINGLI’s German R&D center
  • Modular horizontal & vertical design with 85% common components across the range; electric, diesel and hybrid variants share the same platform
  • Patented one-key in-situ axle expansion; four-wheel drive and four-wheel steering; axle extension and retraction in confined spaces
  • Up to 40% higher operational efficiency compared with comparable machines in the segment
  • Cat3 safety architecture with full redundancy in electronic control software and hardware
  • 230° jib that can be hooked back for standard container transport
  • Equipped with 360V 200–230Ah modular high-voltage battery and 1.5-hour fast charging capability


Product Parameters
Dimensions
  • Max. Working Height: 41.54m / 136ft 3in
  • Max. Platform Height: 39.54m / 129ft 9in
  • Max. Operating Range (+0.6m): 24.10m / 79ft 1in
  • Max. Platform Range: 23.50m / 77ft 1in
  • Overall Length (Stowed): 16.50m / 54ft 2in
  • Overall Width (Axle Expanded): 4.17m / 13ft 8in
  • Overall Width (Axle Retracted): 2.44m / 8ft
  • Overall Height (Stowed): 2.83m / 9ft 3in
  • Transport Size (L×W×H): 11.17m×2.44m×2.83m / 36ft 8in×8ft×9ft 3in
  • Platform Size (L×W): 2.44m×0.91m / 8ft×2ft 12in
  • Turntable Tailswing (Axle Expanded): 1.39m / 4ft 7in
  • Turntable Tailswing (Axle Retracted): 2.28m / 7ft 6in
  • Ground Clearance (Stowed/Raised): 0.40m / 1ft 4in
  • Wheelbase (Axle Expanded): 4.07m / 13ft 4in
  • Wheelbase (Axle Retracted): 4.27m / 14ft
  • Tyres: 445/50/D710


Performance
  • S.W.L (Unrestricted/Restricted): 300kg / 454kg (661lb / 1000lb)
  • Max. Occupants: 3
  • Gradeability: 0.45
  • Travel Speed (Stowed): ≯ 6.0 km/h / ≯ 3.73 mph
  • Travel Speed (Raised): ≯ 1.1 km/h / ≯ 0.68 mph
  • Max. Working Slope (X/Y): 5° / 5°
  • Turret Rotation: 360° continuous
  • Platform Rotation: 180°
  • Jib Movement: 230°
  • Main Boom Maximum Angle: 75°
  • Turning Radius - Axle Expanded (Inside/Outside): 2.99m / 5.41m
  • Turning Radius - Axle Retracted (Inside/Outside): 8.27m / 10.85m


Weight
  • Overall Weight: 21,500 kg / 47,399 lb


Power
  • Hydraulic Tank: 230 L / 60 gal
  • Emergency Power System: 12 V
  • Lithium Battery: 358.4 V / 228 Ah
  • Charger: 358.4 V / 32 A
  • Pump Motor: 360 V / 30 kW


Technical specifications
  • Model: BT41ERT
  • Series: T Series
  • Max. Working Height: 41.54m / 136ft 3in
  • Max. Platform Height: 39.54m / 129ft 9in
  • Max. Operating Range (+0.6m): 24.10m / 79ft 1in
  • Max. Platform Range: 23.50m / 77ft 1in
  • Overall Length (Stowed): 16.50m / 54ft 2in
  • Overall Width (Axle Expanded): 4.17m / 13ft 8in
  • Overall Width (Axle Retracted): 2.44m / 8ft
  • Overall Height (Stowed): 2.83m / 9ft 3in
  • Transport Size (L×W×H): 11.17m×2.44m×2.83m
  • Platform Size (L×W): 2.44m×0.91m
  • Turntable Tailswing (Axle Expanded): 1.39m
  • Turntable Tailswing (Axle Retracted): 2.28m
  • Ground Clearance (Stowed/Raised): 0.40m
  • Wheelbase (Axle Expanded): 4.07m
  • Wheelbase (Axle Retracted): 4.27m
  • Tyres: 445/50/D710
  • S.W.L (Unrestricted/Restricted): 300kg / 454kg
  • Max. Occupants: 3
  • Gradeability: 0.45
  • Travel Speed (Stowed): ≯ 6.0 km/h
  • Travel Speed (Raised): ≯ 1.1 km/h
  • Max. Working Slope (X/Y): 5° / 5°
  • Turret Rotation: 360° continuous
  • Platform Rotation: 180°
  • Jib Movement: 230°
  • Main Boom Maximum Angle: 75°
  • Turning Radius Axle Expanded (Inside/Outside): 2.99m / 5.41m
  • Turning Radius Axle Retracted (Inside/Outside): 8.27m / 10.85m
  • Overall Weight: 21,500 kg
  • Hydraulic Tank Capacity: 230 L / 60 gal
  • Emergency Power System: 12 V
  • Lithium Battery: 358.4 V / 228 Ah
  • Charger: 358.4 V / 32 A
  • Pump Motor: 360 V / 30 kW
