Self-propelled aerial platform BT44ERT
electric4 wheel drive

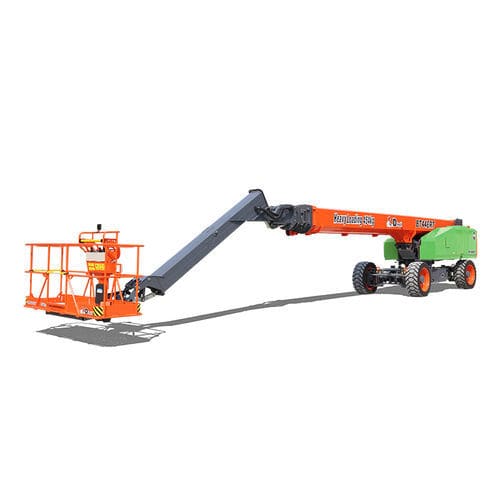

Self-propelled aerial platform - BT44ERT - Zhejiang Dingli Machinery Co,Ltd - electric / 4 wheel drive
Self-propelled aerial platform - BT44ERT - Zhejiang Dingli Machinery Co,Ltd - electric / 4 wheel drive
Self-propelled aerial platform - BT44ERT - Zhejiang Dingli Machinery Co,Ltd - electric / 4 wheel drive - image - 2
Add to favorites
Compare this product

Characteristics

Type
self-propelled
Other characteristics
4 wheel drive, electric
Height

42.4 m, 44.4 m
(139'01" , 145'08" )

Description

Overview
  • Developed by TEUPEN, DINGLI’s German R&D center.
  • Modular horizontal and vertical design with ~85% common components across the range; electric, diesel and hybrid variants on the same platform.
  • Patented one-key in-situ axle expansion with four-wheel drive and four-wheel steering for controlled expansion/retraction in confined spaces.
  • Up to 40% increase in operational efficiency compared with equivalent industry products.
  • Cat3 safety architecture with full redundancy of electronic control software and hardware.
  • Jib with 230° movement that can be hooked back for standard container transport.
  • Equipped with modular high-voltage battery (360V, 200–230Ah) with fast-charging capability (approx. 1.5 hours).


Series
T Series

Product Parameters (excerpt)
  • Dimension:
  • Max. Working Height: 44.44 m / 146 ft
  • Max. Platform Height: 42.44 m / 139 ft 3 in
  • Max. Operating Range (+0.6 m): 25.60 m / 83 ft 12 in
  • Max. Platform Range: 25.00 m / 82 ft
  • Overall Length (Stowed): 17.00 m / 55 ft 9 in
  • Overall Width (Axle Expanded): 4.17 m / 13 ft 8 in
  • Overall Width (Axle Retracted): 2.44 m / 8 ft
  • Overall Height (Stowed): 2.83 m / 9 ft 3 in
  • Transport Size (L×W×H): 11.92 m×2.44 m×2.83 m
  • Platform Size (L×W): 2.44 m×0.91 m
  • Turntable Tailswing (Axle Expanded/Retracted): 1.39 m / 2.28 m
  • Ground Clearance (Stowed/Raised): 0.40 m
  • Wheelbase (Axle Expanded/Retracted): 4.07 m / 4.27 m
  • Tyres: 445/50/D710


Technical specifications
  • Model: BT44ERT
  • Series: T Series
  • S.W.L (Unrestricted/Restricted): 300 kg / 454 kg (661 lb / 1000 lb)
  • Max. Occupants: 3
  • Gradeability: 0.45
  • Travel Speed (Stowed/Raised): ≯ 6.0 km/h / ≯ 1.1 km/h
  • Max. Working Slope (X/Y): 5° / 5°
  • Turret Rotation: 360° continuous
  • Platform Rotation: 180°
  • Jib Movement: 230° (hook-back capability for container transport)
  • Main Boom Max Angle: 75°
  • Turning Radius - Axle Expanded (Inside/Outside): 2.99 m / 5.41 m
  • Turning Radius - Axle Retracted (Inside/Outside): 8.27 m / 10.85 m
  • Overall Weight: 22,700 kg
  • Hydraulic Tank Capacity: 230 L
  • Emergency Power: 12 V
  • Lithium Battery: 358.4 V / 228 Ah (modular high-voltage battery; fast charging)
  • Charger: 358.4 V / 32 A
  • Pump Motor: 360 VDC / 30 kW
