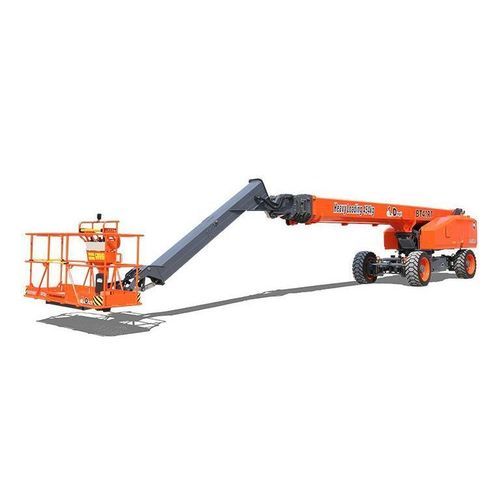

Self-propelled aerial platform BT41RT

electric4 wheel drive

Overview

• Developed by TEUPEN, DINGLI’s German R&D center.
• Modular platform design (horizontal & vertical) with 85% shared components across the range; electric, diesel and hybrid variants on the same platform.
• Patented one-key in-situ axle expansion plus four-wheel drive & steering for tight-space maneuvering.
• Jib with 230° articulation; can be secured for standard container transport.
• Cat 3 safety architecture with redundant electronic control hardware and software.
• Equipped with a Deutz TD2.9 L4 diesel engine, 55.4 kW; gradeability up to 45%.

Product Type

• T Series
• Model: BT41RT

Product Parameters
Dimension
Max. Working Height: 41.54m / 136ft 3in
Max. Platform Height: 39.54m / 129ft 9in
Max. Operating Range (+0.6m): 24.10m / 79ft 1in
Max. Platform Range: 23.50m / 77ft 1in
Overall Length (Stowed): 16.50m / 54ft 2in
Overall Width (Axle Expanded): 4.17m / 13ft 8in
Overall Width (Axle Retracted): 2.44m / 8ft
Overall Height (Stowed): 2.83m / 9ft 3in
Transport Size (L×W×H): 11.17m×2.44m×2.83m / 36ft 8in×8ft×9ft 3in
Platform Size (L×W): 2.44m×0.91m / 8ft×2ft 12in
Turntable Tailswing (Axle Expanded/Retacted): 1.39m / 2.28m
Ground Clearance (Stowed/Raised): 0.40m / 1ft 4in
Wheelbase (Axle Expanded/Retracted): 4.07m / 4.27m
Tyres: 445/50/D710

Performance
S.W.L (Unrestricted/Restricted): 300kg / 454kg (661lb / 1000lb)
Max. Occupants: 3
Gradeability: 45%
Travel Speed (Stowed): ≤ 6.0 km/h / ≤ 3.73 mph
Travel Speed (Raised): ≤ 1.1 km/h / ≤ 0.68 mph
Max. Working Slope (X/Y): 5° / 5°
Turret Rotation: 360° continuous
Platform Rotation: 180°
Jib Movement: 230°
Main Boom Max Angle: 75°
Turning Radius - Axle Expanded (Inside/Outside): 2.99m / 5.41m
Turning Radius - Axle Retracted (Inside/Outside): 8.27m / 10.85m

Weight
Overall Weight: 21300 kg / 46958 lb

Power
Diesel Engine: Deutz TD2.9 L4 — 55.4 kW
Diesel Tank: 150 L / 39 gal
Hydraulic Tank: 230 L / 60 gal
Emergency Power System: 12V

Technical specifications

• Model: BT41RT (T Series)
• Max. Working Height: 41.54 m
• Max. Platform Height: 39.54 m
• Max. Operating Range (+0.6m): 24.10 m
• Max. Platform Range: 23.50 m
• Overall Length (Stowed): 16.50 m
• Overall Width (Axle Expanded/Retracted): 4.17 m / 2.44 m
• Overall Height (Stowed): 2.83 m
• Transport Size: 11.17 m × 2.44 m × 2.83 m
• Platform Size: 2.44 m × 0.91 m
• Turntable Tailswing (Expanded/Retracted): 1.39 m / 2.28 m
• Ground Clearance (Stowed/Raised): 0.40 m
• Wheelbase (Expanded/Retracted): 4.07 m / 4.27 m
• Tyres: 445/50/D710
• S.W.L (Unrestricted/Restricted): 300 kg / 454 kg
• Max. Occupants: 3
• Gradeability: 45%
• Travel Speed (Stowed/Raised): ≤ 6.0 km/h / ≤ 1.1 km/h
• Turret Rotation: 360° continuous; Platform Rotation: 180°
• Jib Movement: 230°; Main Boom Max Angle: 75°
• Overall Weight: 21300 kg
• Diesel Engine: Deutz TD2.9 L4, 55.4 kW
• Diesel Tank Capacity: 150 L; Hydraulic Tank Capacity: 230 L
• Emergency Power: 12V
