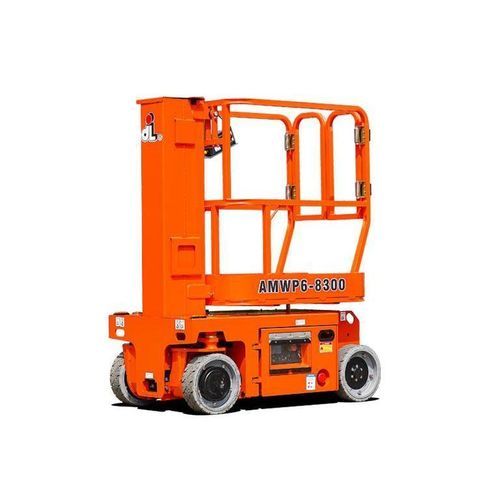

Self-propelled aerial platform AMWP6-8300

electric4 wheel drive

Product Name
AMWP6-8300

Product Type
Self-propelled Vertical Lift

Dimensions
Max. Working Height: 5.66 m / 18 ft 7 in
Max. Platform Height: 3.66 m / 12 ft
Max. Horizontal Reach: /
Max. Up And Over Clearance: /
Overall Length: 1.36 m / 4 ft 5 in
Overall Width: 0.76 m / 2 ft 6 in
Overall Height: 1.67 m / 5 ft 6 in
Platform Size (Length × Width): 1.28 m × 0.68 m / 4 ft 2 in
Platform Extension Size: /
Ground Clearance (Stowed): 0.07 m / 3 in
Ground Clearance (Raised): 0.02 m / 1 in
Wheelbase: 1.04 m / 3 ft 5 in
Turning Radius (Inside/Outside): 0 m
Tyres: Φ323 x 100 mm

Performance
Safe Working Load: /
S.W.L On Extension: 227 kg / 501 lb
Max. Occupants (Indoor/Outdoor): 1
Gradeability: 25%
Max. Working Slope (X/Y): 3.4° / 3.4°
Turret Rotation: /
Jib Movement: /
Travel Speed (Stowed): ≥ 4.8 km/h / ≥ 2.98 mph
Travel Speed (Raised): ≥ 0.8 km/h / ≥ 0.49 mph
Up/Down Speed: 17 s / 21 s

Weight
Overall Weight: 800 kg / 1764 lb

Power
Lead-Acid Maintenance-Free Battery: 24 V / 224 Ah
Lithium Battery: 24 V / 150 Ah
Charger: 24 VDC / 30 A
Driving Motor: 2 × 15 VAC / 0.5 kW
Lifting Motor: /

Technical specifications

• Model: AMWP6-8300
• Type: Self-propelled Vertical Lift
• Max. Working Height: 5.66 m
• Max. Platform Height: 3.66 m
• Platform Size (L×W): 1.28 m × 0.68 m
• Overall Dimensions (L×W×H): 1.36 m × 0.76 m × 1.67 m
• Ground Clearance (Stowed/Raised): 0.07 m / 0.02 m
• Wheelbase: 1.04 m
• Tyres: Φ323 x 100 mm
• S.W.L On Extension: 227 kg
• Max. Occupants: 1
• Gradeability: 25%
• Travel Speed (Stowed/Raised): ≥ 4.8 km/h / ≥ 0.8 km/h
• Up/Down Speed: 17 s / 21 s
• Overall Weight: 800 kg
• Battery Options: Lead-Acid 24 V/224 Ah or Lithium 24 V/150 Ah
• Charger: 24 VDC/30 A
• Driving Motor: 2 × 15 VAC / 0.5 kW
