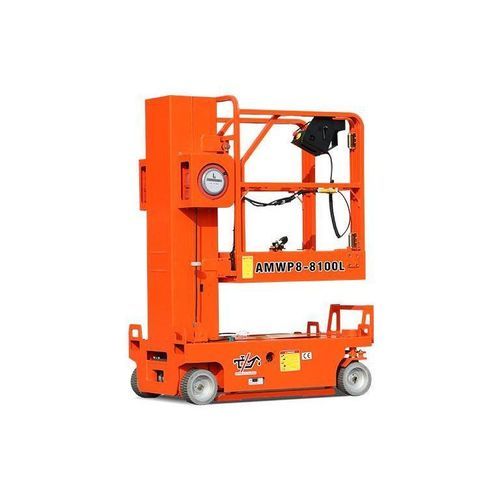

Self-propelled aerial platform AMWP8-8100L

electric4 wheel drive

Overview
AMWP8-8100L is an oil-free, all-electric vertical lift designed for indoor access and maintenance tasks. The unit uses an electric lifting push rod instead of a hydraulic cylinder to provide oil-free operation and simplified maintenance.

Features

• Electric lifting push rod replaces traditional hydraulic cylinder for oil-free operation, enabling energy saving and environmental protection
• Equipped with brushless DC motor for reduced maintenance requirements
• Low noise level, zero emissions and no hydraulic fluid contamination
• Lightweight structure for flexible movement in confined indoor spaces

Product Parameters — Dimension
Max. Working Height: 7.60m / 24ft 11in
Max. Platform Height: 5.60m / 18ft 4in
Max. Horizontal Reach: /
Max. Up And Over Clearance: /
Overall Length: 1.63m / 5ft 4in
Overall Width: 0.80m / 2ft 7in
Overall Height: 1.99m / 6ft 6in
Platform Size (Length×Width): 1.03m×0.76m / 3ft 5in×2ft 6in
Platform Extension Size: 0.50m / 1ft 8in
Ground Clearance (Stowed): 0.06m / 2in
Ground Clearance (Raised): 0.014m / 1in
Wheelbase: 1.21m / 3ft 11in
Turning Radius (Inside/Outside): 0.60m/1.80m / 1ft 11in/5ft 11in
Tyres: φ230×100mm

Product Parameters — Performance
Safe Working Load: 227kg / 500lb
S.W.L On Extension: 113kg / 249lb
Max. Occupants (Indoor/Outdoor): 2/0
Gradeability: 0.25
Max. Working Slope (X/Y): 1.5°/3°
Turret Rotation: /
Jib Movement: /
Travel Speed (Stowed): ≯3.6km/h / ≯2.24mph
Travel Speed (Raised): ≯0.5km/h / ≯0.31mph
Up/Down Speed: 32/32sec

Product Parameters — Weight
Overall Weight: 1310kg / 2888lb

Product Parameters — Power
Lead-Acid Maintenance-Free Battery: 2×12V/115Ah
Lithium Battery: /
Charger: 24V/15A
Driving Motor: 2×24VAC/0.68kW
Lifting Motor: 24VDC/1.4kW

Technical specifications

• Model: AMWP8-8100L
• Category: Oil-free & all-electric vertical lifts
• Max. Working Height: 7.60m / 24ft 11in
• Max. Platform Height: 5.60m / 18ft 4in
• Overall Length: 1.63m / 5ft 4in
• Overall Width: 0.80m / 2ft 7in
• Overall Height: 1.99m / 6ft 6in
• Platform Size (L×W): 1.03m×0.76m / 3ft 5in×2ft 6in
• Platform Extension Size: 0.50m / 1ft 8in
• Ground Clearance (Stowed/Raised): 0.06m / 2in ; 0.014m / 1in
• Wheelbase: 1.21m / 3ft 11in
• Turning Radius (Inside/Outside): 0.60m / 1.80m
• Tyres: φ230×100mm
• Safe Working Load: 227kg / 500lb
• S.W.L On Extension: 113kg / 249lb
• Max. Occupants (Indoor/Outdoor): 2/0
• Gradeability: 0.25
• Max. Working Slope (X/Y): 1.5° / 3°
• Travel Speed (Stowed/Raised): ≯3.6km/h / ≯0.5km/h
• Up/Down Speed: 32/32 sec
• Overall Weight: 1310kg / 2888lb
• Battery: Lead-Acid 2×12V/115Ah (Lithium: not specified)
• Charger: 24V/15A
• Driving Motor: 2×24VAC/0.68kW
• Lifting Motor: 24VDC/1.4kW
