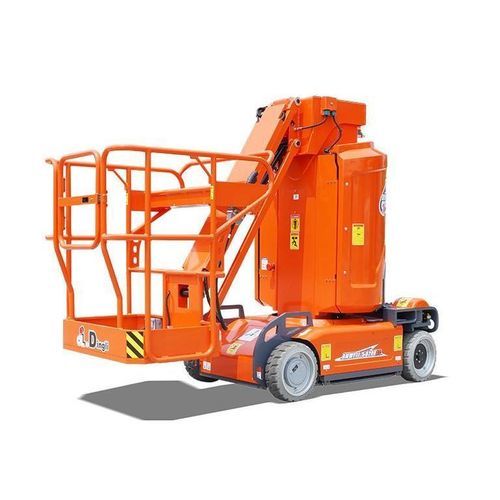

Self-propelled aerial platform AMWP11.5-8200AC

electric4 wheel drive

Product overview
The AMWP11.5-8200AC is a self-propelled vertical lift engineered for safe, low-maintenance access in confined indoor environments such as warehouses, supermarkets, hotels and airports. It combines a fully sealed maintenance-free AC drive system with maintenance-free battery options to minimize downtime and servicing.

Key Features

• Fully sealed AC system — maintenance-free, improved waterproofing and operational safety.
• Electric drive with lightweight structure for flexible operation in narrow aisles.
• Maintenance-free battery options: Lead-acid 24V/200Ah or Lithium 24V/180Ah.
• Driveable at full height for increased productivity in tight spaces.
• 3 m horizontal extension for extended outreach where required.
• Integrated pothole protection system to enhance operator safety.
• Maximum working height 1.20 m higher than comparable units in the class.
• Fork pockets for simplified transportation and handling.
• Wider platform basket and full-height gate for improved access without bending.

Dimensions

• Max. Working Height: 11.20m / 36ft 9in
• Max. Platform Height: 9.20m / 30ft 2in
• Max. Horizontal Reach: /
• Max. Up And Over Clearance: /
• Overall Length: 2.62m / 8ft 7in
• Overall Width: 1.00m / 3ft 3in
• Overall Height: 1.99m / 6ft 6in
• Platform Size (Length×Width): 0.69m×0.93m / 2ft 3in×3ft 1in
• Platform Extension Size: /
• Ground Clearance (Stowed): 0.07m / 3in
• Ground Clearance (Raised): 0.02m / 1in
• Wheelbase: 1.22m / 4ft
• Turning Radius (Inside/Outside): 0m/1.8m / 0in/5ft 11in
• Tyres: φ381×127mm

Performance

• Safe Working Load: 200kg / 441lb
• S.W.L On Extension: /
• Max. Occupants (Indoor/Outdoor): 2/1
• Gradeability: 0.25
• Max. Working Slope (X/Y): 2.5/2.5
• Turret Rotation: 345°
• Jib Movement: +70°/-60°
• Travel Speed (Stowed): ≯5.0km/h / 3.11mph
• Travel Speed (Raised): ≯0.5km/h / 0.31mph
• Up/Down Speed: 42/38sec

Weight

• Overall Weight: 2970kg / 6548lb

Power

• Lead-Acid Maintenance-Free Battery: 24V/200Ah
• Lithium Battery: 24V/180Ah
• Charger: 24VDC/30A
• Driving Motor: 2×15VAC/0.87kW
• Lifting Motor: 15VAC/3kW

Technical specifications

• Model: AMWP11.5-8200AC
• Product type: Self-propelled Vertical Lifts
• Max. Working Height: 11.20m / 36ft 9in
• Max. Platform Height: 9.20m / 30ft 2in
• Overall Length: 2.62m / 8ft 7in
• Overall Width: 1.00m / 3ft 3in
• Overall Height: 1.99m / 6ft 6in
• Platform Size: 0.69m×0.93m / 2ft 3in×3ft 1in
• Ground Clearance (Stowed/Raised): 0.07m / 0.02m
• Wheelbase: 1.22m
• Turning Radius (Outside): 1.8m
• Tyres: φ381×127mm
• Safe Working Load: 200kg
• Max. Occupants (Indoor/Outdoor): 2/1
• Gradeability: 0.25
• Turret Rotation: 345°
• Jib Movement: +70°/-60°
• Travel Speed (Stowed/Raised): ≯5.0km/h / ≯0.5km/h
• Up/Down Speed: 42/38 sec
• Overall Weight: 2970kg
• Battery options: Lead-Acid 24V/200Ah or Lithium 24V/180Ah
• Charger: 24VDC/30A
• Driving Motor: 2×15VAC/0.87kW
• Lifting Motor: 15VAC/3kW
