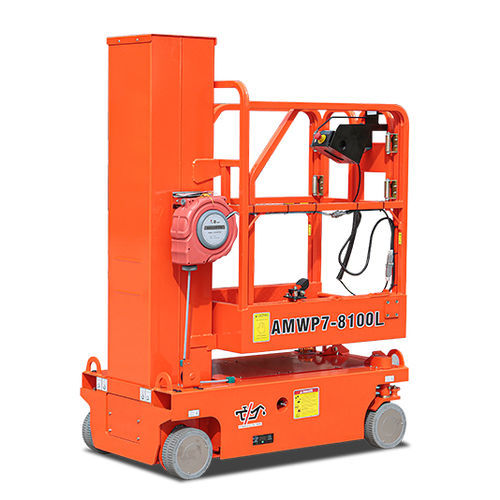

Self-propelled aerial platform AMWP7-8100L

electric4 wheel drive

● Electric lifting push rod replaces traditional hydraulic cylinder, "oil-free" makes energy saving and environmental protection ● Equipped with brush less DC motor, the whole machine is maintenance-free ● No noise, zero emission, no pollution, energy saving and environmental protection ● Light structure, flexible movement Max. Horizontal Reach/ Max. Up And Over Clearance/ Overall Length1.45m / 4ft 9in Overall Width0.76m / 2ft 6in Overall Height1.99m / 6ft 6in Platform Size(Length×Width)1.00m×0.76m / 3ft 3in×2ft 6in Platform Extension Size0.50m / 1ft 8in Ground Clearance(Stowed)0.06m / 2in Ground Clearance(Raised)0.014m / 1in Wheelbase1.21m / 4ft Turning Radius(Inside/Outside)0.60m/1.80m / 2ft/5ft 11in TyresΦ230×80mm Performance Safe Working Load200kg / 440lb S.W.L On Extension113kg / 249lb Max. Occupants(Indoor/Outdoor)1 Gradeability0.25 Max. Working Slope(X/Y)1.5°/3° Turret Rotation/ Jib Movement/ Travel Speed(Stowed)≯3.6km/h / ≯2.20mph Travel Speed(Raised)≯0.5km/h / ≯0.30mph Up/Down Speed28/28sec
